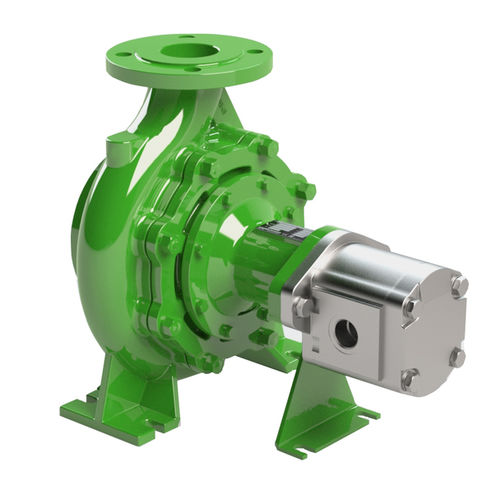

Centrifugal pump HL series

waterhydraulic motornormal priming

OverviewCast iron horizontal centrifugal pumps driven by hydraulic motors, designed for a range of industrial fluid-handling tasks. The HL series provides multiple size options to match flow and head requirements in mobile and stationary hydraulic installations.ApplicationsSpraying systemsLiquid transferWashdown systemsDewateringMiningSeries performance tableSeries | CAPACITY UP TO | HEAD UP TO | POWER UP TOHL32-200 | 42 m3/h | 67 m | 10 kWHL40-200 | 66 m3/h | 67 m | 14 kWHL50-200 | 108 m3/h | 69 m | 22 kWHL65-200 | 168 m3/h | 56 m | 24 kWTechnical specificationsMaterial: Cast ironConfiguration: Horizontal centrifugal pump driven by hydraulic motorRange: HL series (examples: HL32-200, HL40-200, HL50-200, HL65-200)Maximum capacity (depending on series): up to 168 m3/hMaximum head (depending on series): up to 69 mMaximum power (depending on series): up to 24 kW
