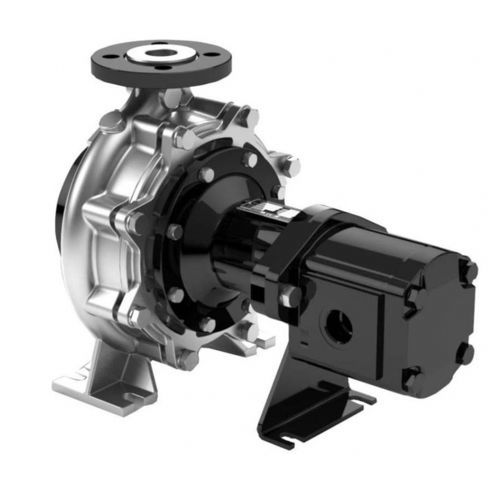

Centrifugal pump H1X series

waterfor liquidshydraulic motor

OverviewHorizontal centrifugal pumps in AISI 316 stainless steel, driven by hydraulic motors for reliable liquid handling in agricultural, industrial and mining environments. Compact horizontal configuration suited to transfer, spraying and washdown applications. Part of the Green line.ApplicationsSpraying systemsLiquid transferWashdown systemsDewateringMiningAvailable series (performance)H1X32-200 | Capacity up to 42 m3/h | Head up to 67 m | Power up to 10 kWH1X40-200 | Capacity up to 66 m3/h | Head up to 65 m | Power up to 14 kWH1X50-200 | Capacity up to 108 m3/h | Head up to 72 m | Power up to 23 kWTechnical specificationsMaterial: AISI 316 stainless steel constructionConfiguration: horizontal centrifugal pumpDrive: hydraulic motor drivenProduct line: Green lineIntended applications: agriculture (spraying systems, liquid transfer), industry (washdown systems), dewatering, miningAvailable models: H1X32-200, H1X40-200, H1X50-200Performance range: capacity up to 108 m3/h; head up to 72 m; power up to 23 kW (model dependent)
