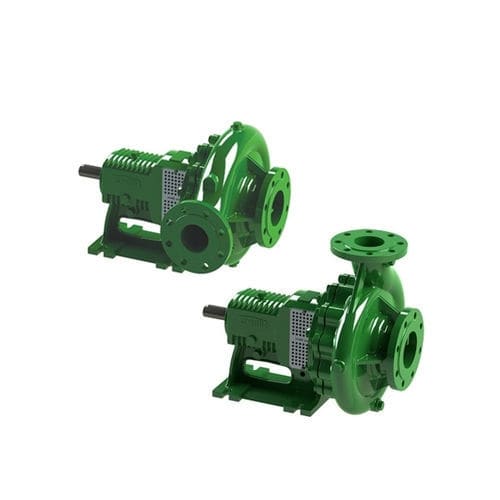

Centrifugal with volute pump SNF series

for fresh waterwaternormal priming

Product description
Horizontal bare-shaft single-stage centrifugal pumps with axial inlet and scroll (volute) outlet. Designed for horizontal installation on a bare shaft with a compact footprint. Delivery flange can be rotated laterally by 90° to either side to facilitate piping orientation. Nominal maximum speed up to 3500 rpm depending on model.

Applications

• Irrigation systems
• Spraying systems
• Liquid transfer
• Water supply

Available series and performance table
Series | INLET X OUTLET | CAPACITY UP TO | HEAD UP TO | MAX SPEED IN RPM
SNF32 | 50 x 32 | 51 m3/h | 95 m | 3500
SNF40 | 65 x 40 | 84 m3/h | 145 m | 3500
SNF50 | 65 x 50 | 120 m3/h | 135 m | 3500
SNF65 | 80 x 65 | 204 m3/h | 155 m | 3500
SNF80 | 100 x 80 | 396 m3/h | 145 m | 3500
SNF100 | 125 x 100 | 552 m3/h | 145 m | 3500
SNF125 | 150 x 125 | 600 m3/h | 55 m | 2300

Technical features / specifications

• Construction: Horizontal bare-shaft single-stage centrifugal pump
• Inlet: axial inlet
• Outlet: scroll (volute) outlet with upwards delivery flange
• Delivery flange: laterally rotating 90° to both sides for flexible connection
• Available series: SNF32, SNF40, SNF50, SNF65, SNF80, SNF100, SNF125
• Capacity range: up to 600 m3/h depending on series
• Head range: up to 155 m depending on series
• Maximum speed: up to 3500 rpm (SNF125: up to 2300 rpm)
• Product range indicated as: Green line
