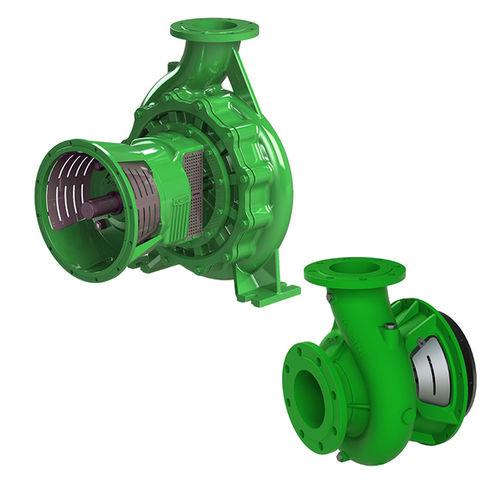

Centrifugal with volute pump FP65

waterwith combustion enginenormal priming

Overview
Single-stage SAE-flanged centrifugal pumps designed for direct coupling to thermic (combustion) engines via SAE flanges. Axial inlet and volute (scroll) outlet provide efficient hydraulic performance and compatibility with engine-mounted installations.

Product line
Green line

Applications

• Irrigation systems
• Liquid transfer
• Filling tanks and reservoirs
• Water supply

Series data table

• FP65 — 65 x 50 — up to 54 m3/h — up to 72 m — max speed 2600 rpm
• FP80 / FSP80 — 80 x 65 — up to 96 m3/h — up to 79 m — max speed 2600 rpm
• FP85 — 80 x 65 — up to 108 m3/h — up to 47 m — max speed 2600 rpm
• FP100 / FSP100 — 100 x 80 — up to 210 m3/h — up to 90 m — max speed 2600 rpm
• FP105 / FSP105 — 100 x 80 — up to 135 m3/h — up to 90 m — max speed 2600 rpm
• FP125 / FSP125 — 125 x 100 — up to 250 m3/h — up to 105 m — max speed 2600 rpm
• FP150 / FSP150 — 150 x 125 — up to 330 m3/h — up to 105 m — max speed 2200 rpm
• FQN150 / FSQN150 — 150 x 125 — up to 360 m3/h — up to 40 m — max speed 2500 rpm
• FSN200 / FSSN200 — 200 x 200 — up to 660 m3/h — up to 35 m — max speed 1800 rpm
• FSS250 — 250 x 250 — up to 1020 m3/h — up to 23 m — max speed 1750 rpm
• FNSF100 — 125 x 100 — up to 450 m3/h — up to 87 m — max speed 1750 rpm
• FNSF125 — 150 x 125 — up to 600 m3/h — up to 87 m — max speed 1750 rpm
• FNSF150 — 200 x 150 — up to 780 m3/h — up to 110 m — max speed 1750 rpm
• FNSF200 — 250 x 200 — up to 960 m3/h — up to 82 m — max speed 1750 rpm
• FNSF250 — 300 x 250 — up to 1300 m3/h — up to 55 m — max speed 1750 rpm

Characteristics / technical specifications

• Pump type: single-stage centrifugal, SAE flanged
• Coupling: direct coupling to thermic (combustion) engines via SAE flanges
• Inlet: axial inlet design
• Outlet: volute (scroll) outlet
• Available series and sizes: FP65 through FNSF250 (inlet/outlet sizes from 65x50 up to 300x250)
• Capacities: from 54 m3/h up to 1300 m3/h depending on series
• Heads: up to 110 m depending on series
• Maximum speeds: range from 1750 rpm up to 2600 rpm depending on series
• Intended applications: irrigation, liquid transfer, tank/reservoir filling, water supply
