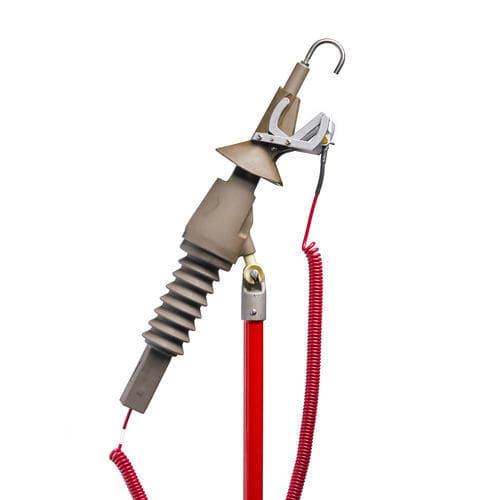

Not specified voltage transmitter 8-133not specified
Add to favorites
Compare this product
Characteristics
- Voltage
Max.: 37,000 V
Min.: 0 V
Description
Product Details
Specifications
Model 8-133 Radio Voltstik
Technical Characteristics / Specifications
- Transmits Voltage readings of up to 37,000 to the Receiver Display
Specifications
Model 8-133 Radio Voltstik
- Range of Operation
- Voltage: 0 - 37,000 volts
- Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) models available
- Resolution
- Voltage 0 - 37,000 volts: 1 Volt
- Accuracy
- Voltage: ± 1% ± 2 Volts
- Mechanical
- Control: One button operation
- Operating Temperature: -22 to +140 °F (-30 to +60 °C)
- Weight: 5.77 lbs, 2.62 kg
- Housing: Shock & water resistant molded urethane
- Hot stick mounting: Universal chuck adapter (Hot stick not included)
- Battery: 9 volt alkaline or lithium
- Readings
- Communicates to: Radio Receiver Model 8-121
- Radio Receiver Display: 5 Digit LCD
- Storage: Four readings
- Radio
- Frequency, Regions 2&3: 916.48 MHz
- Frequency, Region 1: 869.85 MHz
- Power: 1 milliwatt
- Range: 50 Feet, 15.24 Meters
Technical Characteristics / Specifications
- Model: 8-133
- Voltage range: 0 - 37,000 V
- Frequency: 60 Hz (57-63 Hz) or 50 Hz (47-53 Hz)
- Resolution: 1 V
- Accuracy: ± 1% ± 2 V
- Operating temperature: -22 to +140 °F (-30 to +60 °C)
- Weight: 5.77 lbs (2.62 kg)
- Housing: Shock & water resistant molded urethane
- Battery: 9V alkaline or lithium
- Radio frequency: 916.48 MHz (Regions 2&3), 869.85 MHz (Region 1)
- Radio power: 1 mW
- Radio range: 50 ft (15.24 m)
- Communicates to: Radio Receiver Model 8-121
- Display: 5 Digit LCD
- Storage: Four readings
