Digital voltmeter 6-133
portableACradio frequency

Digital voltmeter - 6-133 - SENSORLINK - portable / AC / radio frequency
Digital voltmeter - 6-133 - SENSORLINK - portable / AC / radio frequency
Digital voltmeter - 6-133 - SENSORLINK - portable / AC / radio frequency - image - 2
Add to favorites
Compare this product

Characteristics

Type
digital
Portability
portable
Voltage
AC, radio frequency, DC
Other characteristics
battery-powered, compact, rugged
Voltage

Min.: 0 V

Max.: 37,000 V

Description

Product Overview

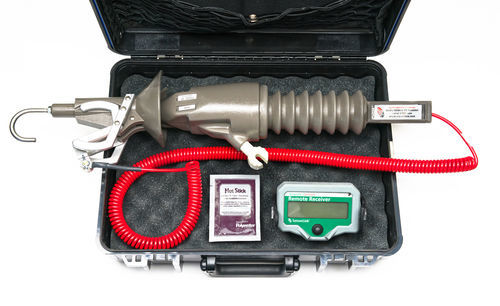

  • Includes both 8-133 Voltstik Sensor Transmitter & 8-121RAV Radio Receiver

Range of Operation
  • Voltage: 0 - 37,000 volts
  • Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) models available

Resolution
  • Voltage 0 - 37,000 volts: 1 Volt

Accuracy
  • Voltage: ± 1% ± 2 Volts

Mechanical
  • Control: One button operation
  • Display: Five Digit Display on Remote Radio Receiver
  • Storage: Four Readings
  • Operating Temperature: -22 to +140 °F (-30 to +60 °C)
  • Housing: Shock & water resistant molded urethane
  • Hot stick mounting: Universal chuck adapter (Hot stick not included)
  • Battery: 9 volt alkaline or lithium (1 each in Transmitter & Receiver)

Weight
  • 8-133 Voltstik: 5.77 lbs (2.62 kg)
  • 8-121 Receiver: 1.40 lbs (0.64 kg)

Radio
  • Frequency, Regions 2&3: 916.48 MHz
  • Frequency, Region 1: 869.85 MHz
  • Power: 1 milliwatt
  • Range: 50 Feet, 15.24 Meters

Key Features
  • Medium Voltage Voltstik holds four readings on Remote Receiver
  • 37,000V, 1 Volt resolution

Technical Specifications
  • Model: 6-133
  • Includes: 8-133 Voltstik Sensor Transmitter & 8-121RAV Radio Receiver
  • Voltage Range: 0 - 37,000 V
  • Resolution: 1 V
  • Accuracy: ± 1% ± 2 V
  • Frequency: 60 Hz (57-63 Hz) or 50 Hz (47-53 Hz)
  • Display: Five Digit on Remote Receiver
  • Storage: Four readings
  • Operating Temperature: -22 to +140 °F (-30 to +60 °C)
  • Housing: Shock & water resistant molded urethane
  • Hot stick mounting: Universal chuck adapter
  • Battery: 9V alkaline or lithium (1 each in Transmitter & Receiver)
  • Weight: 8-133 Voltstik: 5.77 lbs (2.62 kg); 8-121 Receiver: 1.40 lbs (0.64 kg)
  • Radio Frequency: 916.48 MHz (Regions 2&3), 869.85 MHz (Region 1)
  • Radio Power: 1 mW
  • Radio Range: 50 ft (15.24 m)
