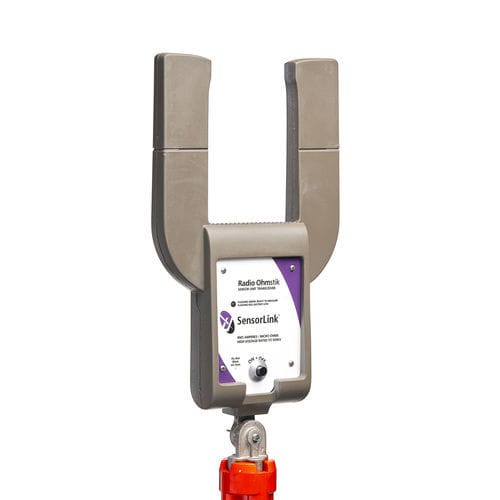

Digital microhmmeter 8-184

portablebattery-powered

Product Overview

• Transmits nine sets of readings to a Remote Display and Laptop
• Measures up to 2500 µΩ, 1400A, 500KV
• Wide Jaw 3.86” sensor opening

Model

• Model 8-184 Radio Linked Live-Line Micro Ohmmeter

Frequency

• 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models available

Range of Operation
Amps: 1 - 1400A
Micro-ohms: 5 - 2500
Voltage Rated: 500 kV

Resolution
Amps 0.9 - 99.9 A: 0.1 A
Amps 100 - 1400 A: 1 A
Micro-ohms 1 - 999: 1
Milli-ohms 1000 - 2500: 1.0

Accuracy
Amps: ± 1% ± 1 A
Micro-ohms Absolute: ± 2% ±2 micro-ohms
Micro-ohms Repeatability: ± 1% ±2 micro-ohms
Note: Accuracy is diminished if the current is less than 15 amps while on 0 - 35kV and when current is less than 50 amps while on 36 - 500 kV

Radio
Frequency: ISM 2.4 GHz
Power: 63 mW, 18 dBm
Power EU and Japan: 10 mW in Europe & Japan
Range: 150' (46 meters) Line of Sight
Power EU and Japan: 120’ (36.5 meters) Line of Sight

Detachable Probes
Fused Probe Wide Sensor Model: 7-081
Adjustable Ohmstik Probe, Model: 7-081 ADJ

Mechanical
Wide Sensor Opening: 3.86 in, 9.8 cm
Wide Sensor Weight: 4.0 lbs, 1.81 kg
Receiver Display Weight: 1.4 lbs, 2.62 kg
Ambient Temperature: -4 to +140° F, -20 to +60° C
Battery 9 Volt Alkaline, 1 each per unit
Battery Life 6-8 Hours at 68°F or 20°C, 3-4 Hours at 32°F or 0°C
Display Sensor Unit: Graphics LCD
Display on Receiver Unit: Graphics LCD

Readings
Communicates to: Radio Receiver Model 8-180
Display on Radio Receiver: Graphics LCD

Software Requirements for PC Communication
Software Application: Radio Ohmstik Software by SensorLink
System Requirements: Windows XP, VISTA, Windows 7, Windows 8, Windows 10
Hardware Requirements: Minimum of two USB port

Technical Specifications

• Model: 8-184
• Transmits nine sets of readings
• Up to 2500 µΩ, 1400A, 500KV
• Wide Jaw 3.86” sensor opening
• Frequency: 60 Hz or 50 Hz models
• Resolution: 0.1 A (0.9-99.9A), 1 A (100-1400A), 1 µΩ (1-999), 1.0 mΩ (1000-2500)
• Accuracy: ±1% ±1A (Amps), ±2% ±2µΩ (Micro-ohms Absolute), ±1% ±2µΩ (Micro-ohms Repeatability)
• Radio: ISM 2.4 GHz, 63 mW (18 dBm), 150' (46m) range
• Detachable Probes: Models 7-081, 7-081 ADJ
• Mechanical: 3.86 in (9.8 cm) opening, 4.0 lbs (1.81 kg) sensor, 1.4 lbs (2.62 kg) receiver
• Operating Temperature: -4 to +140°F (-20 to +60°C)
• Battery: 9V Alkaline, 6-8 hours at 68°F, 3-4 hours at 32°F
• Display: Graphics LCD
• PC Software: Radio Ohmstik Software, Windows XP/7/8/10, 2 USB ports
