Digital microhmmeter 6-082
portableruggedbattery-powered

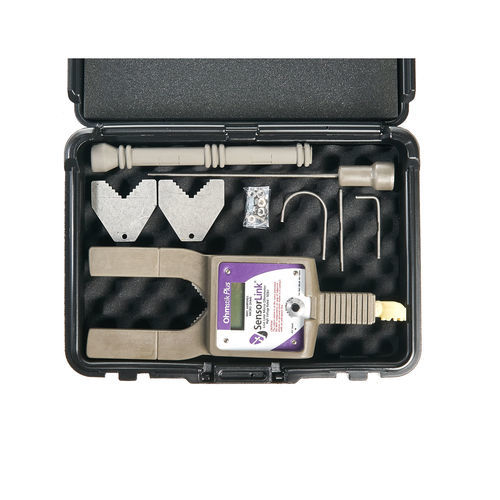

Digital microhmmeter - 6-082 - SENSORLINK - portable / rugged / battery-powered
Digital microhmmeter - 6-082 - SENSORLINK - portable / rugged / battery-powered
Add to favorites
Compare this product

Characteristics

Display
digital
Portability
portable
Other characteristics
rugged, battery-powered
Resistance range

Min.: 0.000005 Ohm

Max.: 0.0025 Ohm

Description

Product Overview
  • Ohmstik holds nine sets of readings up to 2500 µΩ, 1400A, 500KV
  • Standard 2.5” sensor opening

Model 6-082 Live-Line Micro Ohmmeter
  • Range of Operation:
    • Amps: 1 - 1400 A
    • Micro-ohms: 5 - 2500
    • Voltage Rated: 500 kV
    • Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models

Resolution
  • Amps 0.9 - 99.9A: 0.1 A
  • Amps 100 - 1400A: 1 A
  • Micro-ohms 1 - 999: 1
  • Milli-ohms 1000 - 2500: 1.0

Accuracy
  • Amps: ± 1% ± 1 A
  • Micro-ohms Absolute: ± 2% ±2 micro-ohms
  • Micro-ohms Repeatability: ± 1% ±2 micro-ohms
  • Note: Accuracy is diminished if the current is less than 15 amps while on 0 - 35kV and when current is less than 50 amps while on 36 - 500kV

Mechanical
  • Standard Sensor Opening: 2.5 in, 6.35 cm
  • Standard Sensor Weight: 2.4 lbs, 1.10 kg

Operation
  • Measurements: Stores 9 sets of Readings
  • Controls: Single button operation
  • Electrode: Detachable insulated & fused probe
  • Operating Temperature: -22 to +140 degrees F (-30 to +60 degrees C)
  • Display: Graphics LCD
  • Housing: Shock & water resistant molded urethane
  • Hot stick mounting: Universal chuck adapter (Hot stick not included)
  • Battery: 9 volt alkaline

Standards
  • EEC Standards: Successfully passed international test standards indicated by CE

Technical Specifications / Features
  • Model: 6-082
  • Holds nine sets of readings
  • Range: up to 2500 µΩ, 1400A, 500KV
  • Standard 2.5” sensor opening
  • Stores 9 sets of readings
  • Single button operation
  • Detachable insulated & fused probe
  • Operating temperature: -22 to +140°F (-30 to +60°C)
  • Shock & water resistant housing
  • Battery: 9V alkaline
  • CE certified
