Portable clamp ammeter 8-117 XT

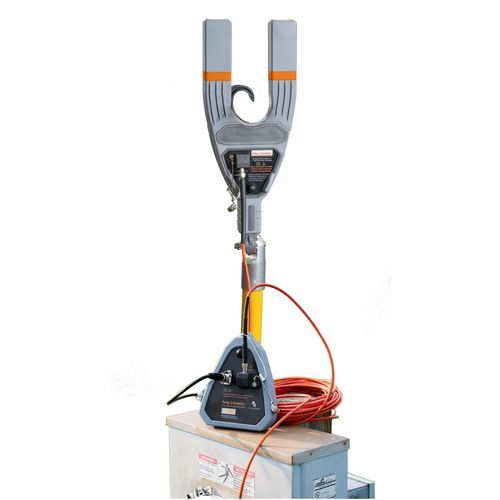

Portable clamp ammeter - 8-117 XT - SENSORLINK
Portable clamp ammeter - 8-117 XT - SENSORLINK
Add to favorites
Compare this product

Characteristics

Mounting
portable

Description

Product Details
  • Model 8-117 XT Fiber Optic Coupled Ammeter

Range of Operation
  • Current: 1-2000 True RMS Amps
  • Voltage Environment: up to 150 kV
  • Accuracy: ±1.5%
  • Frequency: 60Hz (57 to 63) or 50 Hz (47 to 53 Hz) Models available

Amp Sensor Opening
  • Standard Sensor Opening Width: 2.5 in, 6.35 cm

Resolution
  • 1-199.9 A: 0.1 A
  • 200 - 2000 A: 1 A

Analog Output
  • 1 mv RMS per amp on both the low range and high range
  • Output connector is BNC. No DC offset voltage
  • Output impedance: 6000 ohms, minimum

Frequency Response
  • 3000 Hz or to the 50th Harmonic

Fiber Optic Cable
  • Length: 40’, 12.19 m
  • Isolation: 100 kV per foot, 500 kV max

Mechanical
  • Standard Sensor Weight: 4.8 lbs, 2.2 kg
  • Housing: Shock & water resistant molded urethane
  • Hot stick Mounting: Universal chuck adapter (hot stick not included)
  • Battery: Two each 9V alkaline or lithium; one per unit
  • Battery Life: Minimum 4 hours of continuous use
  • Operating temperature: -22° to +140° F, -30° to +60° C
  • Lithium battery required for use below -4°F, -20° C
  • Display: None; unit must be connected to a power quality analyzer

Characteristics / Technical Specifications
  • Model: 8-117 XT
  • Sensor opening: 2.5 in (6.35 cm)
  • Current range: 1-2000 A True RMS
  • Voltage environment: up to 150 kV
  • Accuracy: ±1.5%
  • Frequency: 60Hz (57 to 63) or 50 Hz (47 to 53 Hz)
  • Resolution: 0.1 A (1-199.9 A), 1 A (200-2000 A)
  • Analog output: 1 mV RMS per amp
  • Output connector: BNC
  • Output impedance: 6000 ohms minimum
  • Frequency response: 3000 Hz or to the 50th Harmonic
  • Fiber optic cable length: 40’ (12.19 m)
  • Isolation: 100 kV per foot, 500 kV max
  • Weight: 4.8 lbs (2.2 kg)
  • Housing: Shock & water resistant molded urethane
  • Battery: Two 9V alkaline or lithium
  • Battery life: Minimum 4 hours
  • Operating temperature: -22° to +140° F (-30° to +60° C)
  • Display: None (requires connection to power quality analyzer)
