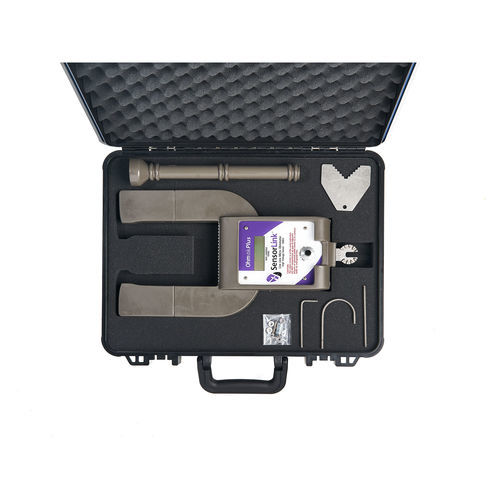

Digital microhmmeter 6-084

portablebattery-poweredrugged

Product Overview

• Ohmstik holds nine sets of readings up to 2500 µΩ, 1400A, 500KV, Wide Jaw 3.86” sensor opening

Model 6-084 Live-Line Micro Ohmmeter
Range of Operation
Amps: 1 - 1400 A
Micro-ohms: 5 - 2500
Voltage Rated: 500 kV
Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models

Resolution
Amps 0.9 - 99.9A: 0.1 A
Amps 100 - 1400A: 1 A
Micro-ohms 1 - 999: 1
Milli-ohms 1000 - 2500: 1.0

Accuracy
Amps: ± 1% ± 1 A
Micro-ohms Absolute: ± 2% ±2 micro-ohms
Micro-ohms Repeatability: ± 1% ±2 micro-ohms
Note: Accuracy is diminished if the current is less than 15 amps while on 0 - 35kV and when current is less than 50 amps while on 36 - 500kV

Mechanical
Wide Sensor Opening: 3.86 in, 9.8 cm
Wide Sensor Weight: 4.0 lbs, 1.81 kg

Operation
Measurements: Stores 9 sets of Readings
Controls: Single button operation
Electrode: Detachable insulated & fused probe
Operating Temperature: -22 to +140 degrees F (-30 to +60 degrees C)
Display: Graphics LCD
Housing: Shock & water resistant molded urethane
Hot stick mounting: Universal chuck adapter (Hot stick not included)
Battery: 9 volt alkaline

EEC Standards
Successfully passed international test standards indicated by CE

Technical Specifications / Features

• Model: 6-084
• Current measurement range: 1 - 1400 A
• Micro-ohm measurement range: 5 - 2500 µΩ
• Voltage rating: 500 kV
• Frequency: 50/60 Hz models available
• Resolution: 0.1 A (0.9-99.9A), 1 A (100-1400A), 1 µΩ (1-999), 1.0 mΩ (1000-2500)
• Accuracy: ±1% ±1A (Amps), ±2% ±2 µΩ (Micro-ohms Absolute), ±1% ±2 µΩ (Micro-ohms Repeatability)
• Sensor opening: 3.86 in (9.8 cm)
• Weight: 4.0 lbs (1.81 kg)
• Stores 9 sets of readings
• Single button operation
• Detachable insulated & fused probe
• Operating temperature: -22 to +140°F (-30 to +60°C)
• Graphics LCD display
• Shock & water resistant molded urethane housing
• Universal chuck adapter for hot stick mounting (hot stick not included)
• 9V alkaline battery
• CE certified
