Analog voltmeter 8-014
portablehigh-voltageAC

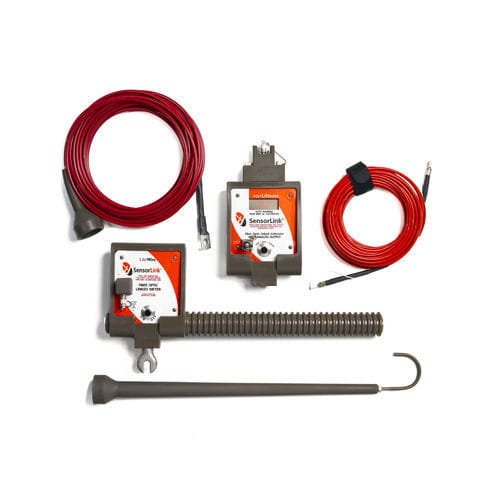

Analog voltmeter - 8-014 - SENSORLINK - portable / high-voltage / AC
Analog voltmeter - 8-014 - SENSORLINK - portable / high-voltage / AC
Add to favorites
Compare this product

Characteristics

Type
analog
Portability
portable
Voltage
high-voltage, AC
Other characteristics
compact, battery-powered, rugged
Voltage

Max.: 40,000 V

Min.: 1,000 V

Description

Product Overview
  • 40 kV Volt LiteWire, fiber optic linked sensor, analog output & 7-047 Insulated Electrode

Model
  • Model 8-014 Fiber Optic Coupled 40KV Voltmeter

Range of Operation
  • Voltage 40 KV Volt Litewire: 1 - 40 kVAC
  • Frequency: 60Hz (57 to 63) or 50 Hz (47 to 53 Hz) Models available

Accuracy
  • Volts: ± 2%

Resolution 30KV Volt Litewire
  • Voltage: 1 - 20 kVAC: 10V
  • Voltage: 20 - 40 kVAC: 100V

Analog Output
  • 40KV Volt Litewire: 50 MV per kV (2 volts = 40 kV)

Output Impedance
  • 6000 ohms, minimum

Frequency Response
  • 2500 Hz which is above the 40th harmonic at 50 or 60 Hz

Fiber Optic Cable
  • Length: 40’, 12.19 m
  • Isolation: 100 kV per foot, 500 kV max

Mechanical
  • Electrodes: Detachable
  • 40KV Volt Litewire Weight: 5.5 lbs, 2.50 kg
  • Housing: Shock & water resistant molded urethane
  • Hot stick Mounting: Universal chuck adapter (hot stick not included)
  • Battery: Two each 9V alkaline or lithium; one each in Sensor and Receiver
  • Battery Life: Minimum 4 hours of continuous use
  • Operating temperature: -22° to +140° F, -30° to +60° C
  • Lithium battery required for use below -4°F, -20° C
  • Display: None; unit must be connected to a power quality analyzer

Technical Specifications
  • Model: 8-014
  • Voltage Range: 1 - 40 kVAC
  • Frequency: 50/60 Hz models available
  • Accuracy: ±2%
  • Resolution: 10V (1-20 kVAC), 100V (20-40 kVAC)
  • Analog Output: 50 mV/kV
  • Output Impedance: ≥6000 Ω
  • Frequency Response: 2500 Hz
  • Fiber Optic Cable Length: 40’ (12.19 m)
  • Isolation: 100 kV/ft, 500 kV max
  • Weight: 5.5 lbs (2.50 kg)
  • Housing: Shock & water resistant urethane
  • Battery: 2x 9V (alkaline or lithium)
  • Battery Life: ≥4 hours continuous
  • Operating Temp: -22° to +140°F (-30° to +60°C)
  • Display: None (requires external analyzer)
