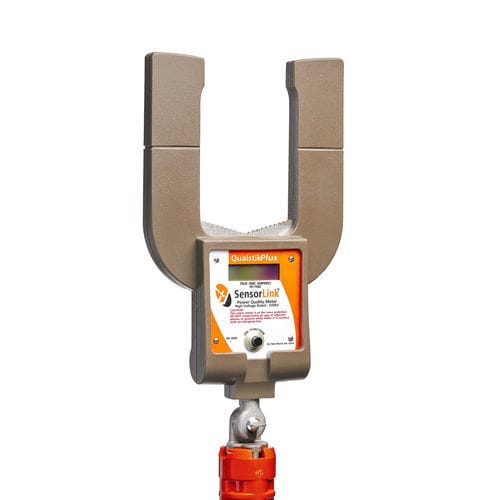

Wattmeter with power quality and harmonic analyzer 8-062 Plus

electric poweractive powerdigital

Product Overview

• Qualstik holds nine sets of power quality readings up to 2000A, 500kV, Wide Jaw 3.86" sensor opening

Model

• 8-062 Plus

Detailed Specifications
Range of Operation
True RMS Amps: 5 - 2000 A
Power Factor: 0.01 - (Lag) to 0.01 + (Lead)
THD Amps: 1 - 100%
Voltage: Rated 500 kV
Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models available

Resolution
Amps 1.0 - 99A: 0.1 A
Amps 100 - 2000A: 1 A
Power Factor: 1.0 to 0.01
THD Amps: 1%

Accuracy
Amps: ± 1% ±2 Counts
Power Factor: ± .01 from .71 Lead to .71 Lag
THD Amps: ± 1% from 0 to 25% ±
Note: Accuracy is diminished if the current is less than 15 amps

Mechanical
Measurements: Stores Nine Readings
Wide Sensor Opening: 3.86 in, 9.8 cm
Wide Sensor Weight: 3.5 lbs, 1.58 kg
Operating Temperature: -22 to +140 degrees F (-30 to +60 degrees C)
Display: Graphics LCD
Housing: Shock & water resistant molded urethane
Controls: Single button operation
Hot stick mounting: Universal chuck adapter (Hot stick not included)
Battery: 9 volt alkaline

EEC Standards
Successfully passed international test standards indicated by CE

Technical Features / Specifications

• True RMS Amps: 5 - 2000 A
• Power Factor: 0.01 - (Lag) to 0.01 + (Lead)
• THD Amps: 1 - 100%
• Voltage: Rated 500 kV
• Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models available
• Resolution: Amps 1.0 - 99A: 0.1 A; Amps 100 - 2000A: 1 A; Power Factor: 1.0 to 0.01; THD Amps: 1%
• Accuracy: Amps: ± 1% ±2 Counts; Power Factor: ± .01 from .71 Lead to .71 Lag; THD Amps: ± 1% from 0 to 25% ±
• Stores Nine Readings
• Wide Sensor Opening: 3.86 in, 9.8 cm
• Wide Sensor Weight: 3.5 lbs, 1.58 kg
• Operating Temperature: -22 to +140 degrees F (-30 to +60 degrees C)
• Display: Graphics LCD
• Housing: Shock & water resistant molded urethane
• Controls: Single button operation
• Hot stick mounting: Universal chuck adapter (Hot stick not included)
• Battery: 9 volt alkaline
• CE certified
