Analog clamp ammeter 8-117 WJ
portable

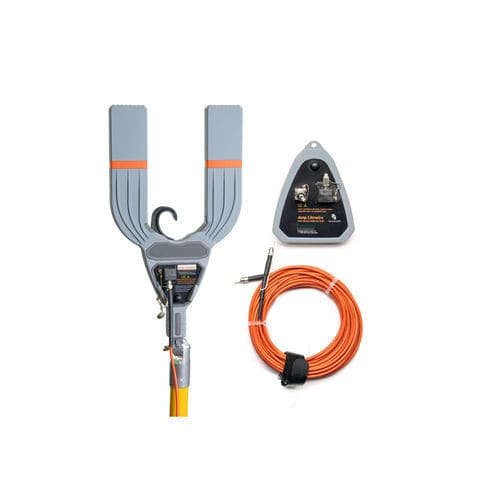

Analog clamp ammeter - 8-117 WJ - SENSORLINK - portable
Analog clamp ammeter - 8-117 WJ - SENSORLINK - portable
Add to favorites
Compare this product

Characteristics

Technology
analog
Mounting
portable

Description

Product Overview
  • Fiber optic linked sensor with analog output
  • 4.0" opening

Fiber Optic Coupled Ammeter
  • Range of Operation: Current 1-2000 True RMS Amps
  • Voltage Environment: up to 150 kV
  • Accuracy: ±1.5%
  • Frequency: 60Hz (57 to 63) or 50 Hz (47 to 53 Hz) Models available

Amp Sensor Opening
  • Wide Sensor Opening Width: 3.86 in, 9.84 cm

Resolution
  • 1-199.9 A: 0.1 A
  • 200 - 2000 A: 1 A

Analog Output
  • 1 mv RMS per amp on both the low range and high range
  • Output connector is BNC. No DC offset voltage
  • Output impedance: 6000 ohms, minimum

Frequency Response
  • 3000 Hz or to the 50th Harmonic

Fiber Optic Cable
  • Length: 40’, 12.19 m
  • Isolation: 100 kV per foot, 500 kV max

Mechanical
  • Wide Sensor Weight: 6.0 lbs, 2.73 kg
  • Housing: Shock & water resistant molded urethane
  • Hot stick Mounting: Universal chuck adapter (hot stick not included)
  • Battery: Two each 9V alkaline or lithium; one per unit
  • Battery Life: Minimum 4 hours of continuous use
  • Operating temperature: -22° to +140° F, -30° to +60° C
  • Lithium battery required for use below -4°F, -20° C
  • Display: None; unit must be connected to a power quality analyzer

Technical Specifications
  • Current Range: 1-2000 True RMS Amps
  • Voltage Environment: up to 150 kV
  • Accuracy: ±1.5%
  • Frequency: 60Hz (57 to 63) or 50 Hz (47 to 53 Hz)
  • Sensor Opening Width: 3.86 in, 9.84 cm
  • Resolution: 0.1 A (1-199.9 A), 1 A (200-2000 A)
  • Analog Output: 1 mv RMS per amp
  • Output Connector: BNC
  • Output Impedance: 6000 ohms, minimum
  • Frequency Response: 3000 Hz or to the 50th Harmonic
  • Fiber Optic Cable Length: 40’, 12.19 m
  • Isolation: 100 kV per foot, 500 kV max
  • Weight: 6.0 lbs, 2.73 kg
  • Housing: Shock & water resistant molded urethane
  • Mounting: Universal chuck adapter
  • Battery: Two 9V alkaline or lithium
  • Battery Life: Minimum 4 hours
  • Operating Temperature: -22° to +140° F, -30° to +60° C
  • Display: None (requires connection to power quality analyzer)
