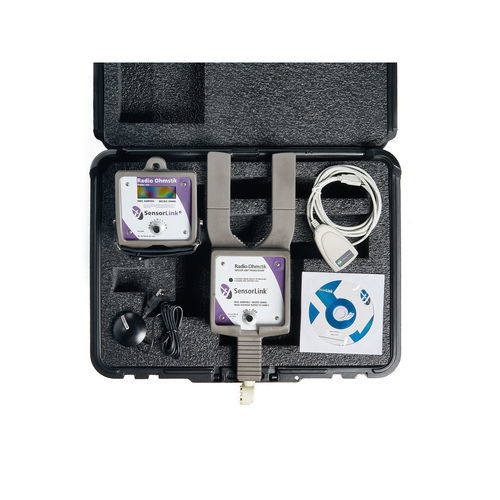

Digital microhmmeter 6-182

portablebattery-powered

Product Overview

• Radio Ohmstik holds nine sets of readings and transmits to a Remote Receiver and Laptop
• Measures up to 2500 µΩ, 1400A, 500KV
• Standard 2.5” sensor opening

Model

• Model 6-182 Radio Linked Live-Line Micro Ohmmeter

Frequency

• 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models available

Range of Operation
Amps: 1 - 1400A
Micro-ohms: 5 - 2500
Voltage Rated: 500 kV

Resolution
Amps 0.9 - 99.9 A: 0.1 A
Amps 100 - 1400 A: 1 A
Micro-ohms 1 - 999: 1
Milli-ohms 1000 - 2500: 1.0

Accuracy
Amps: ± 1% ± 1 A
Micro-ohms Absolute: ± 2% ±2 micro-ohms
Micro-ohms Repeatability: ± 1% ±2 micro-ohms
Note: Accuracy is diminished if the current is less than 15 amps while on 0 - 35kV and when current is less than 50 amps while on 36 - 500 kV

Radio
Frequency: ISM 2.4 GHz
Power: 63 mW, 18 dBm
Power EU and Japan: 10 mW in Europe & Japan
Range: 150', (46 meters) Line of Sight
Power EU and Japan: 120’ (36.5 meters) Line of Sight

Detachable Probes
Fused Probe Standard Sensor Model: 7-081 XT
Adjustable Ohmstik Probe, Model: 7-081 ADJ

Mechanical
Standard Sensor Opening: 2.5 in, 6.35 cm
Standard Sensor Weight: 2.3 lbs, 1.05 kg
Receiver Display Weight: 1.4 lbs, 2.62 kg
Ambient Temperature: -4 to +140° F, -20 to +60° C
Battery 9 Volt Alkaline, 1 each per unit
Battery Life 6-8 Hours at 68°F or 20°C, 3-4 Hours at 32°F or 0°C
Display Sensor Unit: Graphics LCD
Display on Receiver Unit: Graphics LCD

Software Requirements for PC Communication
Software Application: Radio Ohmstik Software by SensorLink
System Requirements: Windows XP, VISTA, Windows 7, Windows 8, Windows 10
Hardware Requirements: Minimum of two USB port

Technical Specifications

• Model: 6-182
• Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz)
• Current Range: 1 - 1400A
• Micro-ohms Range: 5 - 2500
• Voltage Rated: 500 kV
• Resolution: 0.1 A (0.9 - 99.9 A), 1 A (100 - 1400 A), 1 micro-ohm (1 - 999), 1.0 milli-ohm (1000 - 2500)
• Accuracy: Amps ± 1% ± 1 A, Micro-ohms Absolute ± 2% ±2 micro-ohms, Repeatability ± 1% ±2 micro-ohms
• Radio Frequency: ISM 2.4 GHz
• Radio Power: 63 mW, 18 dBm (10 mW in EU/Japan)
• Radio Range: 150' (46 m) Line of Sight (120’/36.5 m in EU/Japan)
• Sensor Opening: 2.5 in (6.35 cm)
• Sensor Weight: 2.3 lbs (1.05 kg)
• Receiver Display Weight: 1.4 lbs (2.62 kg)
• Ambient Temperature: -4 to +140° F (-20 to +60° C)
• Battery: 9 Volt Alkaline, 1 per unit
• Battery Life: 6-8 Hours at 68°F (20°C), 3-4 Hours at 32°F (0°C)
• Display: Graphics LCD (Sensor & Receiver Unit)
• Software: Radio Ohmstik Software by SensorLink
• PC Requirements: Windows XP, VISTA, 7, 8, 10; Minimum two USB ports
