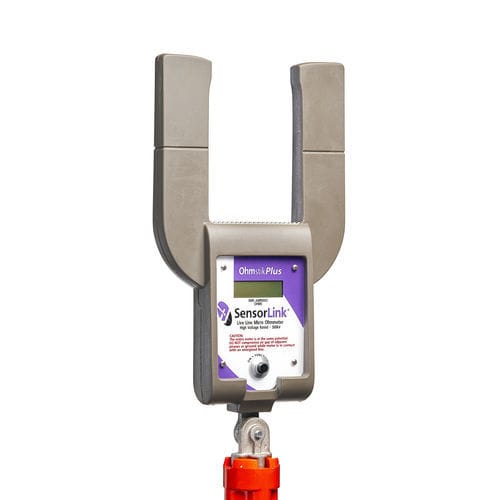

Digital microhmmeter 8-084 PLUSportableruggedbattery-powered
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Portability
- portable
- Other characteristics
- rugged, battery-powered
- Resistance range
Max.: 0.0025 Ohm
Min.: 0.000005 Ohm
Description
Product Overview
Model 8-084 Plus Live-Line Micro Ohmmeter
Resolution
Accuracy
Mechanical
Operation
EEC Standards
Technical Specifications / Features
- Ohmstik holds nine sets of readings up to 2500 µΩ, 1400A, 500KV, Wide Jaw 3.86” sensor opening
Model 8-084 Plus Live-Line Micro Ohmmeter
- Range of Operation:
- Amps: 1 - 1400 A
- Micro-ohms: 5 - 2500
- Voltage Rated: 500 kV
- Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models
Resolution
- Amps 0.9 - 99.9A: 0.1 A
- Amps 100 - 1400A: 1 A
- Micro-ohms 1 - 999: 1
- Milli-ohms 1000 - 2500: 1.0
Accuracy
- Amps: ± 1% ± 1 A
- Micro-ohms Absolute: ± 2% ±2 micro-ohms
- Micro-ohms Repeatability: ± 1% ±2 micro-ohms
- Note: Accuracy is diminished if the current is less than 15 amps while on 0 - 35kV and when current is less than 50 amps while on 36 - 500kV
Mechanical
- Wide Sensor Opening: 3.86 in, 9.8 cm
- Wide Sensor Weight: 4.0 lbs, 1.81 kg
Operation
- Measurements: Stores 9 sets of Readings
- Controls: Single button operation
- Electrode: Detachable insulated & fused probe
- Operating Temperature: -22 to +140 degrees F (-30 to +60 degrees C)
- Display: Graphics LCD
- Housing: Shock & water resistant molded urethane
- Hot stick mounting: Universal chuck adapter (Hot stick not included)
- Battery: 9 volt alkaline
EEC Standards
- Successfully passed international test standards indicated by CE
Technical Specifications / Features
- Model: 8-084 PLUS
- Stores up to 9 sets of readings
- Measurement range: 5 - 2500 µΩ, 1 - 1400A, up to 500kV
- Wide Jaw 3.86” sensor opening
- Shock & water resistant housing
- Operating temperature: -22 to +140°F (-30 to +60°C)
- Battery: 9V alkaline
- CE certified
