Digital voltmeter 6-333
portableammeter

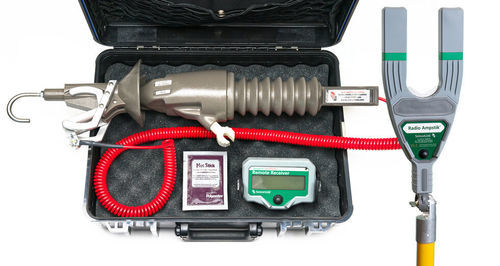

Digital voltmeter - 6-333 - SENSORLINK - portable / ammeter
Digital voltmeter - 6-333 - SENSORLINK - portable / ammeter
Add to favorites
Compare this product

Characteristics

Type
digital
Portability
portable
Other characteristics
ammeter
Voltage

Max.: 69,000 V

Min.: 0 V

Description

Product Overview
  • Radio Linked True RMS Ammeter and Voltmeter, 5000A, 37,000V

Kit Contents
  • Kit 6-333 Troubleman's Kit includes 8-133 Radio Voltstik, 6-122XT Radio Ampstik, and 8-121RAV Receiver

Model 6-122XT Radio Ampstik
  • Range of Operation: Voltage 0 - 69 kV, Current 0.5 - 5000 A, Frequency 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz)
  • Actual Frequency indicated on back of meter

Resolution
  • Amps 0.1-99.9A: 0.1A
  • Amps 100-5000A: 1A

Accuracy
  • Amps: ± 1% ± 2 counts

Mechanical
  • Operation Controls: Single button operation
  • Sensor Opening Width: 2.50 in (6.35 cm)
  • Weight Ampstik Sensor: 2.31 lbs, 1.05 kg
  • Weight Amp/Volt Receiver: 1.40 lbs, 0.64 kg
  • Operating Temperature: -22 to +140 °F (-30 to +60 °C)
  • Display: 5 Digit Display
  • Storage: Four Readings
  • Housing: Shock & water resistant molded urethane
  • Hot stick mounting: Universal chuck adapter (Hot stick not included)
  • Battery: 9 volt alkaline (1 ea in Transmitter & Receiver)
  • Battery Life: 5 days continuous use

Radio
  • Frequency, Regions 2&3: 916.48 MHz
  • Frequency, Region 1: 869.85 MHz
  • Power: 1 milliwatt
  • Range: 50 Feet, 15.24 Meters

Model 8-133 Radio Voltstik
  • Range of Operation: Voltage 0 - 37,000 volts
  • Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) models available

Resolution
  • Voltage 0 - 37,000 volts: 1 Volt

Accuracy
  • Voltage: ± 1% ± 2 Volts

Mechanical
  • Control: One button operation
  • Display: Five Digit Display on Remote Radio Receiver
  • Storage: Four Readings
  • Operating Temperature: -22 to +140 °F (-30 to +60 °C)
  • Housing: Shock & water resistant molded urethane
  • Hot stick mounting: Universal chuck adapter (Hot stick not included)
  • Battery: 9 volt alkaline or lithium (1 ea in Transmitter & Receiver)
  • Weight Voltstik Sensor: 5.77 lbs, 2.62 kg
  • Weight Amp/Volt Receiver: 1.40 lbs, 0.64 kg

Radio
  • Frequency, Regions 2&3: 916.48 MHz
  • Frequency, Region 1: 869.85 MHz
  • Power: 1 milliwatt
  • Range: 50 Feet, 15.24 Meters

Technical Specifications
  • Kit includes: 8-133 Radio Voltstik, 6-122XT Radio Ampstik, 8-121RAV Receiver
  • Model Number: 6-333
  • True RMS measurement
  • Voltage measurement up to 37,000V
  • Current measurement up to 5000A
  • Shock & water resistant housing
  • Universal hot stick mounting (adapter, hot stick not included)
  • Battery powered (9V alkaline or lithium)
  • Radio communication range: 50 feet (15.24 meters)
