Digital microhmmeter 6-184
portablebattery-powered

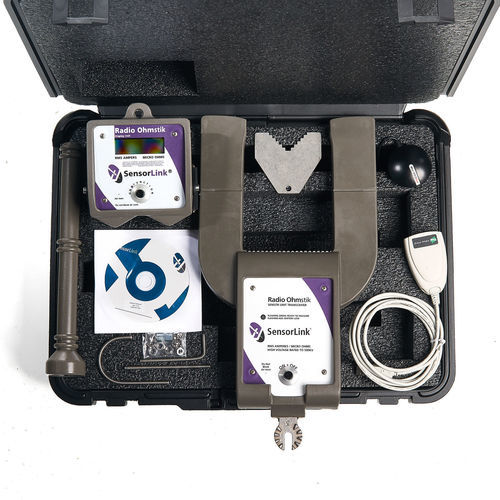

Digital microhmmeter - 6-184 - SENSORLINK - portable / battery-powered
Digital microhmmeter - 6-184 - SENSORLINK - portable / battery-powered
Add to favorites
Compare this product

Characteristics

Display
digital
Portability
portable
Other characteristics
battery-powered
Resistance range

Min.: 0.000005 Ohm

Max.: 0.0025 Ohm

Description

Product Overview
  • Radio Ohmstik holds nine sets of readings and transmits to a Remote Receiver and Laptop
  • Measures up to 2500 µΩ, 1400A, 500KV
  • Wide Jaw 3.86” sensor opening

Radio Linked Live-Line Micro Ohmmeter
  • Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models available

Range of Operation
  • Amps: 1 - 1400A
  • Micro-ohms: 5 - 2500
  • Voltage Rated: 500 kV

Resolution
  • Amps 0.9 - 99.9 A: 0.1 A
  • Amps 100 - 1400 A: 1 A
  • Micro-ohms 1 - 999: 1
  • Milli-ohms 1000 - 2500: 1.0

Accuracy
  • Amps: ± 1% ± 1 A
  • Micro-ohms Absolute: ± 2% ±2 micro-ohms
  • Micro-ohms Repeatability: ± 1% ±2 micro-ohms
  • Note: Accuracy is diminished if the current is less than 15 amps while on 0 - 35kV and when current is less than 50 amps while on 36 - 500 kV

Radio
  • Frequency: ISM 2.4 GHz
  • Power: 63 mW, 18 dBm
  • Power EU and Japan: 10 mW in Europe & Japan
  • Range: 150', (46 meters) Line of Sight
  • Power EU and Japan: 120’ (36.5 meters) Line of Sight

Detachable Probes
  • Fused Probe Wide Sensor Model: 7-081
  • Adjustable Ohmstik Probe, Model: 7-081 ADJ

Mechanical
  • Wide Sensor Opening: 3.86 in, 9.8 cm
  • Wide Sensor Weight: 4.0 lbs, 1.81 kg
  • Receiver Display Weight: 1.4 lbs, 2.62 kg
  • Ambient Temperature: -4 to +140° F, -20 to +60° C
  • Battery 9 Volt Alkaline, 1 each per unit
  • Battery Life 6-8 Hours at 68°F or 20°C, 3-4 Hours at 32°F or 0°C
  • Display Sensor Unit: Graphics LCD
  • Display on Receiver Unit: Graphics LCD

Software Requirements for PC Communication
  • Software Application: Radio Ohmstik Software by SensorLink
  • System Requirements: Windows XP, VISTA, Windows 7, Windows 8, Windows 10
  • Hardware Requirements: Minimum of two USB port

Technical Specifications
  • Product Type: Radio Linked Micro-Ohmmeter Kit
  • Model Number: 6-184
  • Sensor Opening: 3.86 in (9.8 cm)
  • Measurement Range: 5 - 2500 µΩ, 1 - 1400A, up to 500 kV
  • Radio Frequency: ISM 2.4 GHz
  • Battery: 9V Alkaline
  • Operating Temperature: -20 to +60°C
  • Display: Graphics LCD
