Digital micro-ohmmeter 8-180

portablebench-top

Product Overview

• Displays up to nine sets of Readings from the Radio Ohmstik Transmitter

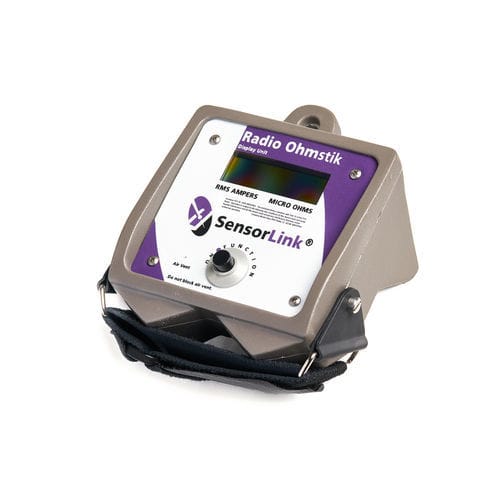

Model 8-180 Radio Linked Live-Line Micro Ohmmeter Display Unit

• Radio

Frequency: ISM 2.4 GHz
Power: 63 mW, 18 dBm
Power EU and Japan: 10 mW in Europe & Japan
Range: 150', (46 meters) Line of Sight
Power EU and Japan: 120’ (36.5 meters) Line of Sight

Mechanical
Receiver Display Weight: 1.4 lbs, 2.62 kg
Ambient Temperature: -4 to +140° F, -20 to +60° C
Battery: 9 Volt Alkaline
Display on Receiver Unit: Graphics LCD

Readings
Communicates to: Radio Sensor Model 8-182 Micro Ohmmeter

Software Requirements for PC Communication
Software Application: Radio Ohmstik Software by SensorLink
System Requirements: Windows XP, VISTA, Windows 7, Windows 8, Windows 10
Hardware Requirements: Minimum of two USB port

Technical Specifications / Features

• Model: 8-180
• Radio Frequency: ISM 2.4 GHz
• Radio Power: 63 mW, 18 dBm (10 mW in Europe & Japan)
• Radio Range: 150' (46 meters) Line of Sight (120’/36.5 meters in EU/Japan)
• Receiver Display Weight: 1.4 lbs (2.62 kg)
• Operating Temperature: -4 to +140° F (-20 to +60° C)
• Battery: 9 Volt Alkaline
• Display: Graphics LCD
• Compatible with: Radio Sensor Model 8-182 Micro Ohmmeter
• PC Software: Radio Ohmstik Software by SensorLink
• PC OS: Windows XP, VISTA, 7, 8, 10
• PC Hardware: Minimum two USB ports
