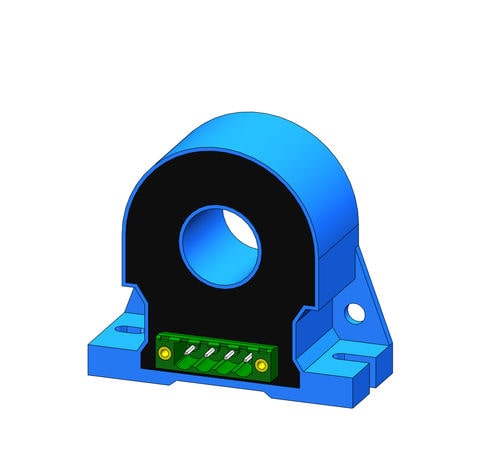

Open-loop Hall effect current sensor SCK11 series
fixedDCAC

open-loop Hall effect current sensor
open-loop Hall effect current sensor
open-loop Hall effect current sensor
Add to favorites
Compare this product


Characteristics

Technology
open-loop Hall effect
Mounting
fixed
Electrical characteristics
DC, AC
Primary current

Min.: 50 A

Max.: 300 A

Description

SCK11 Series Hall Effect Open Loop Current Transducer Features: 1. Primary input current range: Ipn=50A, 100A, 300A, 600A 2.Dual power supply, working voltage: ±12V or ±15V (± 1% ) 3. Voltage output ±4V or ±5V. 4. Accuracy and linearity, class 1 5. response time less than 5uS 6. Users of sample resistor must over than 10KΩ 7. Window diameter ø20 Applications: Variable Frequency Drives, Switched Mode power supplies, Control Panels, Uninterrupted Power supplies, Inverter device, locomotive and many other industrial areas. To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * (please describe your requirements considering such as): 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )
