Open-loop Hall effect current sensor SCY5

ACDCanalog

Product Overview

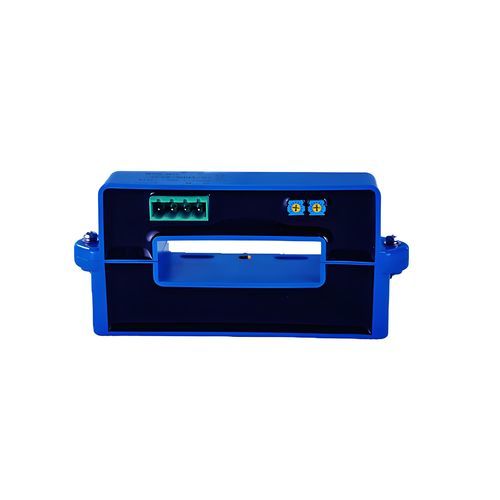

SCY5 Series Hall Current Sensor is a new generation Open loop Split core current sensor based on Hall effect principle. It can accurately measure DC, AC, pulse current, and various irregular waveforms in electrical isolation conditions. The sensor features a round hole type perforation for cable connections and is widely used in inverters, power supplies, DC panels, welding machines, and other equipment. Its split core design allows the up and down parts to open, making installation very easy.

Technical Data
Parameters @25 ℃/Model

SCY5-

500A	800A	1000A	1200A	1500A	1800A
Nominal Rms Current (Ipn)	±500AT	±800AT	±1000AT	±1200AT	±1500AT	±1800AT
Primary current measuring range (Ipm)	1000AT	1600AT	2000AT	2400AT	3000AT	4000AT
Load resistance	≥10KΩ
Output Voltage	±4V or ±5V
Working Voltage	DC ±12V or ±15V
Accuracy	±1%
Linearity	±1%
Withstand voltage	3kVrms/50Hz/1min
Zero output	<30mV
Offset temperature characteristics	< ±0.1%/°C
Thermal drift of Vo	<±1mV/°C (IF=0)
Hysteresis offset	<±25mV (If=F.S. 0 <---> Rated input current)
Response time	< 7uS
Bandwidth	±DC -4KHZ
Current consumption	±23mA
Operating temperature	-20~+80 °C
Storage temperature	-40~+85 °C

Dimension (mm)

• Size error: ±1mm
• Primary aperture: □64*16mm
• SCY5 output terminal: Molex 5045-04AG
• SCY5T output terminal: 2EDGVC-5.08-4P
• SCY5T mating plug: 2EDGK-5.08-4P
• The IP indication direction is the positive direction of the current, OFS is the zero adjustment, and GIN is the output regulation
• Incorrect wiring may cause damage to the sensor

Instructions

• SCY5 Series’s up and down can open and close without removing the busbarline, easy to install
• Based on open-loop principle, it can measure DC, AC and Pulse current
• Square perforation, mainly measure copper conductor current
• Features: High accuracy, low power consumption, high liability and strong overload capacity
• Caution: Incorrect wiring may damage the sensor

Characteristics / Technical Specifications

• Open loop split core Hall effect current sensor
• Measures DC, AC, and pulse currents
• Electrical isolation
• Nominal current: 500A to 1800A
• Output voltage: ±4V or ±5V
• Working voltage: DC ±12V or ±15V
• Accuracy: ±1%
• Linearity: ±1%
• Withstand voltage: 3kVrms/50Hz/1min
• Response time: < 7uS
• Bandwidth: ±DC -4KHZ
• Operating temperature: -20~+80 °C
• Storage temperature: -40~+85 °C
• Primary aperture: □64*16mm
• Easy installation due to split core design
