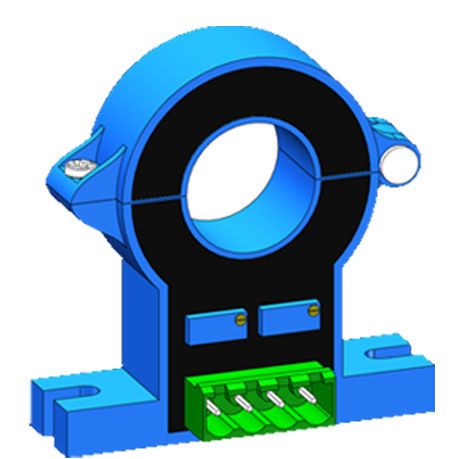

Open-loop Hall effect current sensor SCY6

ACDChigh-accuracy

Product Details
SCY6 Series Hall Current Sensor is a new generation Open loop Split core current sensor based on Hall effect principle. It can accurately measure DC, AC, and pulse current as well as various irregular waveforms in electrical isolation conditions. The sensor features a round hole type perforation for cable connections and is widely used in inverters, all kinds of power supplies, DC panels, welding machines, and other equipment. The up and down can be opened, making this model very easy to install. SCY6 Series has a similar model, SCY6D Series, which operates with a single power supply (+5V, +12V).

• Easy installation: Up and down can open and close without removing the busbar line.
• Based on open-loop principle: Measures DC, AC, and pulse current.
• Square perforation: Mainly measures wire conductor current.
• Features: High accuracy, low power consumption, high reliability, and strong overload capacity.
• Caution: Incorrect wiring may damage the sensor.

Technical Data
Parameters（25℃）/Model
SCY6-
100A | 200A | 300A | 500A
Nominal Rms Current (Ipn): ±100AT | ±200AT | ±300AT | ±500AT
Measuring Range (Ip): 300AT | 600AT | 750AT | 1000AT
Load resistance Rmax: ≥10KΩ
Output Voltage: ±4V or 5V
Working voltage: DC ±12V or ±15V (±5%)
Accuracy @ Ta=25°C: ±1%
Linearity @ Ta=25°C: ±1%
Withstand voltage: 2.5 kVrms/50Hz/1min
Offset Voltage: <±30mV (100A), <±15mV (others)
Offset temperature characteristics: < ±0.08%/°C (100A), < ±0.05%/°C (others)
Thermal drift of Vo: <±2mV/°C (100A), <±1mV/°C (others)
Hysteresis offset: <30mV (100A), <20mV (others, If=F.S. 0<--->Nominal input current)
Response time: < 5uS
Current consumption: <±15mA
Operating temperature: -20~+80 °C
Storage temperature: -40~+85 °C
Hole inside diameter (mm): ø21

Dimension (mm)

Notes:

• Size error: ±1mm
• Primary aperture: φ21mm
• Y6T output terminal: 2EDGVC-5.08-4P
• Y6R output interface: Amphenol BD-04AFMM-QL8XX
• The IP indication direction is the positive direction of the current, OFS is the zero adjustment, and GIN is the output regulation
• Incorrect wiring may cause damage to the sensor

Instructions

• SCY6 Series's up and down can open and close without removing the busbar line, easy to install.
• Based on open-loop principle, it can measure DC, AC and Pulse current.
• Square perforation, mainly measure wire conductor current.
• Features: High accuracy, low power consumption, high reliability and strong overload capacity.
• Caution: Incorrect wiring may damage the sensor.

Weight & Package
96pcs per box

Caractéristiques / spécifications techniques

• Nominal Rms Current (Ipn): ±100AT, ±200AT, ±300AT, ±500AT
• Measuring Range (Ip): 300AT, 600AT, 750AT, 1000AT
• Load resistance Rmax: ≥10KΩ
• Output Voltage: ±4V or 5V
• Working voltage: DC ±12V or ±15V (±5%)
• Accuracy @ Ta=25°C: ±1%
• Linearity @ Ta=25°C: ±1%
• Withstand voltage: 2.5 kVrms/50Hz/1min
• Offset Voltage: <±30mV (100A), <±15mV (others)
• Offset temperature characteristics: < ±0.08%/°C (100A), < ±0.05%/°C (others)
• Thermal drift of Vo: <±2mV/°C (100A), <±1mV/°C (others)
• Hysteresis offset: <30mV (100A), <20mV (others)
• Response time: < 5uS
• Current consumption: <±15mA
• Operating temperature: -20~+80 °C
• Storage temperature: -40~+85 °C
• Hole inside diameter: ø21mm
• Size error: ±1mm
• Y6T output terminal: 2EDGVC-5.08-4P
• Y6R output interface: Amphenol BD-04AFMM-QL8XX
