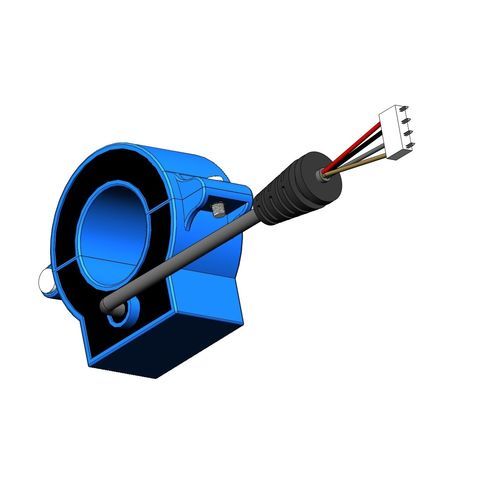

Open-loop Hall effect current transducer SCY13B-750A

clampplug-inDC

SCY13B-750A SCY13B-750A is a electric open-loop current sensor develops on hall effect principle. There is galvanic isolation between primary and secondary circuit provides accurate electronic measurement of DC, AC or pulse currents. Bipolar power supply +/-5V and voltage output ±4.5V. The SCY13B series measure the current flow in a wire/cable with a current range from 0 amps to 750 amps SCY13B comes with a harness connector, wire connector directly soldering into sensor PCB and provide a stable output signal when measure. Features: •Ipn 750A •Measure range about 1*ipn •Working voltage(supply voltage of the sensor): DC +/-5V •Output:±4.5V •Linearity: class 1 (±1%) •Accuracy: class1 (±1%) •Split core design, primary through hole size 24mm  - Harness use: JST Connector, Harness length: 345±15mm. Instructions Round perforation ø24mm, the up and down is open-able, so much easy installation. Advantages: High accuracy, good linearity and fast response, low temperature drift and current consumption. To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * （please describe your requirements considering such as）: 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )
