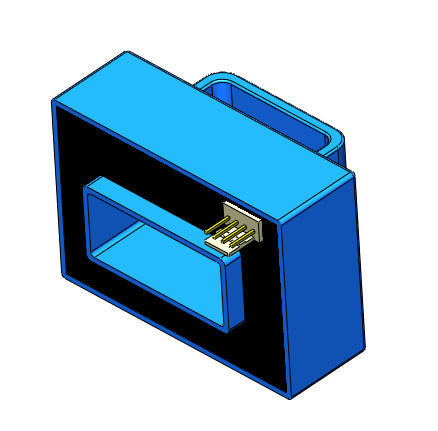

Open-loop Hall effect current sensor SCK35

Open-loop Hall effect current sensor - SCK35 - Shenzhen Socan Technologies Co.,Ltd
Open-loop Hall effect current sensor - SCK35 - Shenzhen Socan Technologies Co.,Ltd
Open-loop Hall effect current sensor - SCK35 - Shenzhen Socan Technologies Co.,Ltd - image - 2
Open-loop Hall effect current sensor - SCK35 - Shenzhen Socan Technologies Co.,Ltd - image - 3
Add to favorites
Compare this product
Go to the Shenzhen Socan Technologies Co.,Ltd website for more information

Characteristics

Technology
open-loop Hall effect
Primary current

3,000 A

Description

Product Details
  • Based on Hall effect measurement principle, open loop circuit mode.
  • The isolation voltage between primary and secondary is greater than 3000VAC.
  • Can measure DC, AC, pulse, and various irregular waveforms under isolated conditions.
  • Dynamic performance (di/dt and response time) is optimal when the busbar is fully filled with primary perforations.

Drawing & Dimension (mm)
  • See dimension drawing image (provided below in images section).

Notes
  • Size error: ±1mm
  • Primary aperture: □ 41.5*17.5mm
  • Fastening hole: φ4.5mm*2
  • SCK35 output terminal: Molex 5045-04AG
  • SCK35T output terminal: 2EDGVC-5.08-4P
  • SCK35T mating plug: 2EDGK-5.08-4P
  • The IP indication direction is the positive direction of the current
  • The temperature of the primary conductor shall not exceed 105°C
  • Incorrect wiring may cause damage to the sensor

Technical Specifications / Features
  • Open loop Hall effect current sensor
  • Series: SCK35
  • Isolation voltage: >3000VAC
  • Primary aperture: 41.5 x 17.5 mm
  • Output terminal: Molex 5045-04AG (SCK35), 2EDGVC-5.08-4P (SCK35T)
  • Fastening holes: 2 x φ4.5mm
  • Operating temperature (primary conductor): ≤105°C
