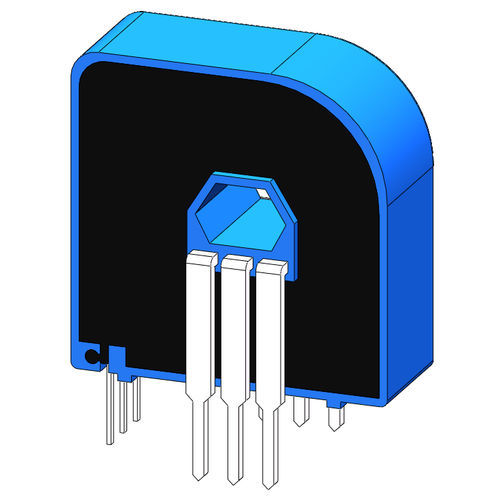

Open-loop Hall effect current sensor SCK23D

PCBDCAC

Product Details
SCK23 Series Hall Open Loop Current Sensor is a new generation open loop current sensor based on Hall effect principle. It can accurately measure DC, AC and pulse current and other various irregular waveforms current in electrical isolation conditions. PCB board mounting way and single power supply, products is potting by imported resin, which has excellent thermal conductivity and scalability. High-performance core result minimal residual magnetism, all electronic is imported components assembled.

Technical Parameters

• Nominal Input Current (Ipn): ±6AT, ±10AT, ±25AT, ±50AT
• Measuring Range (Ip): up to 100AT
• Load resistance Rmax: ≥10kΩ
• Output voltage: 2.5 V ±2 V
• Working voltage: DC +5V(±5%)
• Accuracy @ Ta=25°C: ±0.5%
• Linearity @ Ta=25°C: ±0.5%
• Withstand voltage: 3.0kVrms/50Hz/min
• Offset Voltage: 2.5V <±1%
• Offset temperature characteristics: < ±0.05%/°C
• Offset voltage temperature characteristics: < ±0.1%/°C
• Hysteresis offset: <±5mV
• Response time: < 5uS
• Current consumption: <±15mA
• Operating temperature: -40~+80°C
• Storage temperature: -40~+85°C

Notes

• Size error: ±0.5mm
• Primary aperture: ◇4.4*6.6mm
• Fastening hole: φ4.5mm
• Lead pin output, spacing 2.54*2mm
• The IP indication direction is the positive direction of the current
• The temperature of the primary conductor shall not exceed 105°C
• Incorrect wiring may cause damage to the sensor

Characteristics / Technical Specifications

• Open loop Hall-effect current sensor
• PCB mount
• Measures DC, AC, pulse, and irregular waveform currents
• Electrical isolation
• Single power supply: DC +5V (±5%)
• Potting by imported resin for thermal conductivity and scalability
• Minimal residual magnetism
• Imported electronic components
• Nominal input current: ±6AT, ±10AT, ±25AT, ±50AT
• Measuring range: up to 100AT
• Accuracy: ±0.5%
• Linearity: ±0.5%
• Withstand voltage: 3.0kVrms/50Hz/min
• Operating temperature: -40~+80°C
• Storage temperature: -40~+85°C
