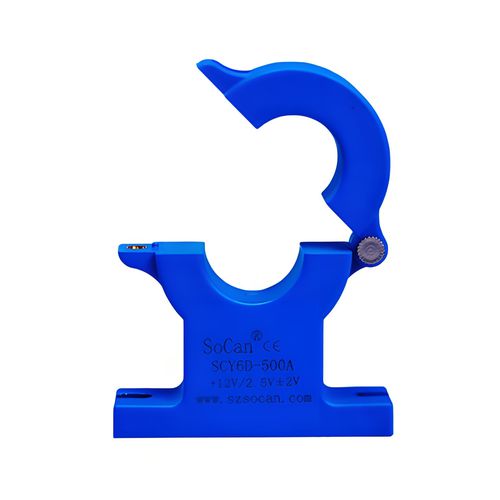

Hall effect current sensor SCY6D

DCAC4-20 mA

Product Details
SCY6D Single Power Split Core Hall Effect Current Sensor is a single power supply hall current sensor, open loop measurement. There is galvanic isolation between primary and secondary circuit of the sensor, it can measure DC, AC or pulse currents. SCY6D Series's up and down can open and close without removing the busbar line, easy to install. Round perforation, mainly measures wire conductor current. Features: High accuracy, low power consumption, high liability and strong overload capacity. SCY6D Series has a similar model, which is SCY6 Series, it is a dual power supply one.

Technical Data
Parameters（25℃）/Model | SCY6D-
100A | 200A | 300A | 500A
Nominal Rms Current (Ipn) | ±100AT | ±200AT | ±300AT | ±500AT
Measuring Range (Ip) | 400AT | 600AT | 800AT | 1000AT
Load resistance Rmax | ≥10KΩ
Output Voltage | 2.5V±2V or 4-20mA
Working voltage | DC +12V (±5%)
Accuracy @ Ta=25°C | ±1%
Linearity @ Ta=25°C | ±1%
Withstand voltage | 2.5 kVrms/50Hz/1min
Zero Voltage | 30V ±%
Offset temperature characteristics | < ±0.08%/°C (100A), < ±0.05%/°C (others)
Thermal drift of Vo | <±2mV/°C (100A), <±1mV/°C (others)
Hysteresis offset | <30mV (100A), <20mV (others, If=F.S. 0<--->Nominal input current)
Response time | < 5uS
Current consumption | <25mA
Operating temperature | -20~+80 °C
Storage temperature | -40~+85 °C
Hole inside (mm) | diameter 21

Dimension
Hole diameter 20mm

Instructions

• SCY6D Series's up and down can open and close without removing the busbar line, easy to install.
• Based on open-loop principle, it can measure DC, AC and Pulse current.
• Round perforation, diameter 20mm, mainly measures wire conductor current.
• Features: High accuracy, low power consumption, high liability and strong overload capacity.
• Can be customized according to the requirements of the product.

Caution: Incorrect wiring may damage the sensor.
Note: Can be customized for 30A, 50A as the primary input current.

Caractéristiques / Spécifications techniques

• Model: SCY6D
• Type: Single Power Split Core Hall Effect Current Sensor
• Measurement: Open loop, DC/AC/Pulse current
• Galvanic isolation between primary and secondary
• Nominal RMS Current: ±100AT, ±200AT, ±300AT, ±500AT
• Measuring Range: 400AT, 600AT, 800AT, 1000AT
• Load resistance: ≥10KΩ
• Output: 2.5V±2V or 4-20mA
• Working voltage: DC +12V (±5%)
• Accuracy: ±1%
• Linearity: ±1%
• Withstand voltage: 2.5 kVrms/50Hz/1min
• Zero Voltage: 30V ±%
• Offset temperature characteristics: < ±0.08%/°C (100A), < ±0.05%/°C (others)
• Thermal drift of Vo: <±2mV/°C (100A), <±1mV/°C (others)
• Hysteresis offset: <30mV (100A), <20mV (others)
• Response time: < 5uS
• Current consumption: <25mA
• Operating temperature: -20~+80 °C
• Storage temperature: -40~+85 °C
• Hole inside: diameter 21mm
• Dimension: Hole diameter 20mm
