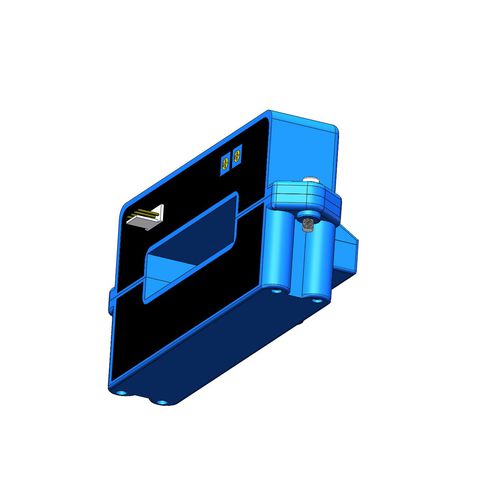

Hall effect current sensor SCY5D-300A

panel-mountclampDC

SCY5D-300A is a Unipolar power supply model of SCY5 Series, which is an open-able current transducer develops on hall-effect, window size: 64*16mm. Non-contact measurement of current 0 - 300Amps. Built in 2 open-able parts, give a flexible installation without mechanical remove of the busbar or the cable. Features: •Ipn 300A dc •Measure range about 3*ipn •Working voltage(supply voltage of the sensor): DC +12V •Output:2.5V±2.0V •Linearity: class 1 (±1%) •Accuracy: class1 (±1%) •Split core design, primary through hole size 64*16mm Other model options of SCY5 Series: SCY5-800A, SCY5-2000A, SCY5D-300A We can customize different current and voltage output according to the users requirements. Applications: Variable Frequency Drives, Switched Mode power supplies, Control Panels, Uninterrupted Power supplies, Inverter device, locomotive and many other industrial areas. To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * （please describe your requirements considering such as）: 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )
