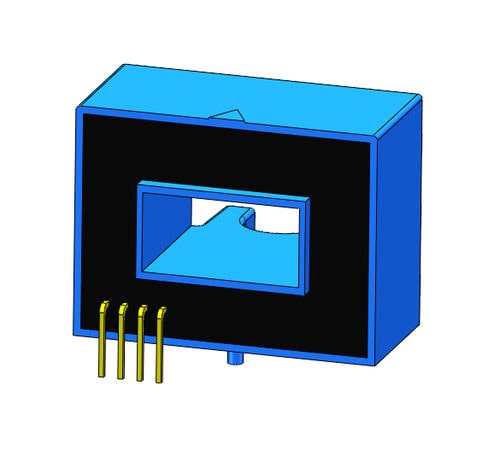

Open-loop Hall effect current transducer SCK3P series

board-mountpanel-mountDC

SCK3P Series are one series of the family product of SCK3 series. - - SCK3p series are open loop current sensor develops on the basic of open-loop hall effect principle, through hole install, window size 10.5*20.5mm. Primary input current rating from 50 Amps to 600 Amps. SCK3P series is pcb mounted current sensor. - SCK3P Characteristics •Open-loop hall current sensor. •Ipn 50A, 100A, 200A, 300A, 400A, 500A, 600A •Measure range about 3*ipn •Working voltage(supply voltage of the sensor): DC ±12V or ±15V •Output: ±4V or ±5V •Linearity: class 1 (±1%) •Accuracy: class1 (±1%) •Square perforation, mainly measure copper conductor current. Advantage: Non-contact measuring way, excellent accuracy, low power consumption, good current overload capability, easy use, high reliability and long term usage with your system. We can customize different sensor according to the users requirements. Applications: Widely used in measure electrical parameters such as in variable frequency drives, UPS, Battery-management, motor-control applications, DC/DC converters and so on. To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * （please describe your requirements considering such as）: 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )
