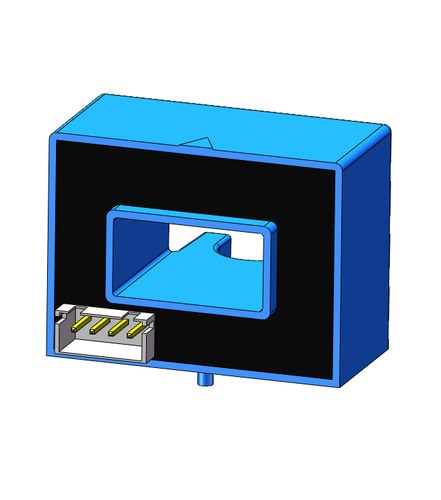

Open-loop Hall effect current sensor SCK3A series

panel-mountplug-inDC

SCK3A Series are the family product of SCK3 series. - SCK3A series are open loop current sensor develops on the basic of open-loop hall effect principle, through hole install, window size 10.5*20.5mm. Primary input current rating from 50 Amps to 600 Amps. SCK3A using the terminals of JST B4B-XH-A. - SCK3A Characteristics •Open-loop hall current sensor. •Ipn 50A, 100A, 200A, 300A, 400A, 500A, 600A •Measure range about 3*ipn •Working voltage(supply voltage of the sensor): DC ±12V or ±15V •Output: ±4V or ±5V •Linearity: class 1 (±1%) •Accuracy: class1 (±1%) •Square perforation, mainly measure copper conductor current. Advantage: Non-contact measuring way, excellent accuracy, low power consumption, good current overload capability, easy use, high reliability and long term usage with your system. We can customize different sensor according to the users requirements. Application includes but no least in: •Inverters (AC Drives, Variable Frequency drive) •UPS (uninterruptable power supply, static converters for DC motor drives) •SMPS (Switched Mode Power Supplies), Control Panels •Power supplies for welding applications, •Combined box •Battery Manage System •Electric vehicles, high-speed rail equipment and so on Certification: CE, ROHS To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * （please describe your requirements considering such as）: 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )
