- Diaphragm pressure switch
- SUCO Robert Scheuffele GmbH & Co. KG

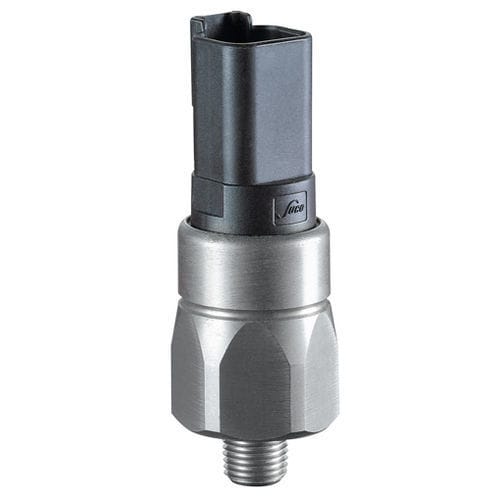

Diaphragm pressure switch 0110NOfor liquidsIP67
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Contact type
- NO
- Fluid
- for liquids
- Protection level
- rugged, IP67, IP6K9K
- Applications
- industrial
- Other characteristics
- compact, rugged, plug-in
- Pressure range
Min.: 0.1 bar
(1.45 psi)Max.: 50 bar
(725.19 psi)- Switching power: current
4 A
- Burst pressure
400 bar
(5,801.51 psi)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)
Description
The all-rounder with the broad selection of options
Large selection of electrical plug-in types for quick attachment and reliable connection
Compact and rugged design in industrial environments like construction and agricultural machinery or commercial vehicles
Switching point can be set on site with adjusting screw in the connector
High overpressure resistance, compact, small switches, available as normally open or normally closed
Contact Material: - Silber
Integrated: - yes
Overpressure Safety (bar): - 300 bar
Overpressure Safety (MPa): - 30 MPa
Overpressure Safety (PSI): - 4350 psi
Connection: - M 10x1 keg.
Hysteresis: - Average value approx. 5 - 30% (not adjustable)
