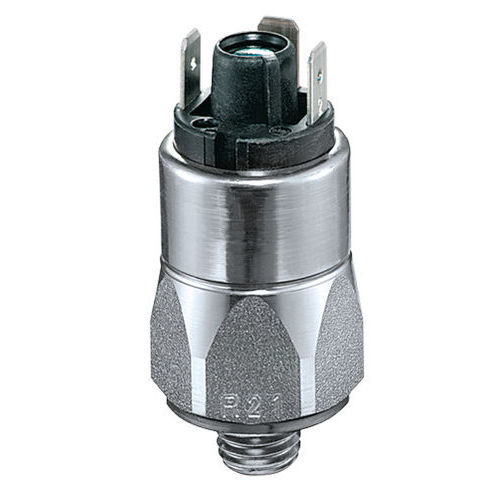

Piston pressure switch 0191SPDTfor liquidsIP65
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Contact type
- SPDT
- Fluid
- for liquids
- Protection level
- rugged, IP65
- Other characteristics
- adjustable
- Pressure range
Min.: 50 bar
(725.19 psi)Max.: 200 bar
(2,900.75 psi)- Switching power: current
50 mA
Description
Switching point can be adjusted when fitted on site
High overpressure safety and long service life under harsh conditions
Operating voltage up to 250 V
Pressure type: Overpressure
Adjustable switching point: Yes
Contact Material: - Gold
Integrated: - no
IP Rating: - IP00
Adjustable: - no
Overpressure Safety (bar): - 700 bar
Overpressure Safety (MPa): - 70 MPa
Overpressure Safety (PSI): - 10150 psi
Hysteresis: - Average value approx. 10 - 30% (adjustable at factory)
