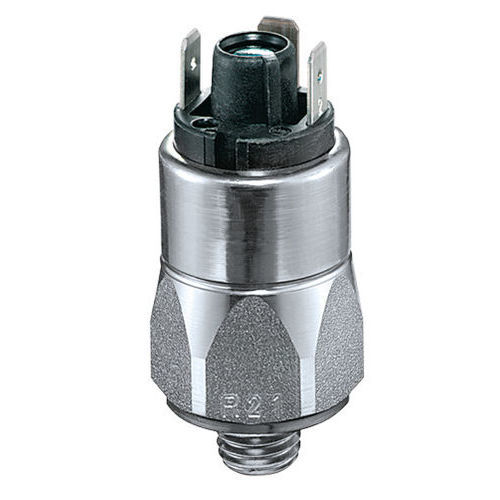

Piston pressure switch 0187
NPT 1/8for liquidsstainless steel

Piston pressure switch - 0187 - SUCO Robert Scheuffele GmbH & Co. KG - NPT 1/8 / for liquids / stainless steel
Piston pressure switch - 0187 - SUCO Robert Scheuffele GmbH & Co. KG - NPT 1/8 / for liquids / stainless steel
Piston pressure switch - 0187 - SUCO Robert Scheuffele GmbH & Co. KG - NPT 1/8 / for liquids / stainless steel - image - 2
Add to favorites
Compare this product

Characteristics

Technology
piston
Process connection
NPT 1/8
Fluid
for liquids
Material
stainless steel
Protection level
rugged, IP65
Other characteristics
adjustable
Pressure range

Max.: 200 bar
(2,900.75 psi)

Min.: 50 bar
(725.19 psi)

Switching power: current

4 A

Description

Switching point can be adjusted when fitted on site Factory adjustable hysteresis (except types 0140 and 0141) High overpressure safety and long service life under harsh conditions Operating voltage up to 250 V Contact Material: - Silber Integrated: - no IP Rating: - IP00 Adjustable: - no Overpressure Safety (bar): - 700 bar Overpressure Safety (MPa): - 70 MPa Overpressure Safety (PSI): - 10150 psi Electrical Connection: - Steckanschluss Hysteresis: - Average value approx. 10 - 30% (adjustable at factory
