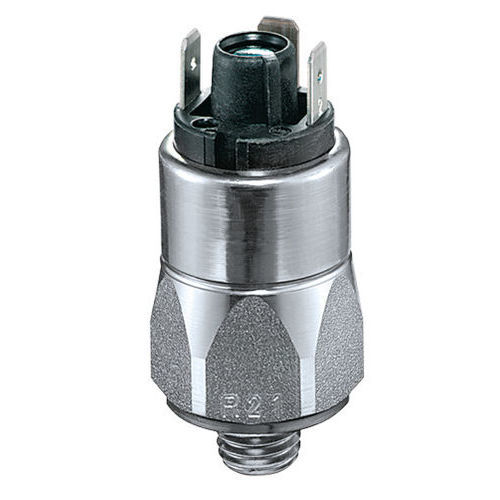

Piston pressure switch 0171
SPDTUNFfor liquids

Piston pressure switch - 0171 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / UNF / for liquids
Piston pressure switch - 0171 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / UNF / for liquids
Piston pressure switch - 0171 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / UNF / for liquids - image - 2
Piston pressure switch - 0171 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / UNF / for liquids - image - 3
Add to favorites
Compare this product

Characteristics

Technology
piston
Contact type
SPDT
Process connection
UNF
Fluid
for liquids
Protection level
IP65
Other characteristics
adjustable
Pressure range

Max.: 200 bar
(2,900.75 psi)

Min.: 50 bar
(725.19 psi)

Switching power: current

4 A

Description

Switching point can be adjusted when fitted on site High overpressure safety and long service life under harsh conditions Operating voltage up to 250 V Pressure type: Overpressure Adjustable switching point: Yes Hysteresis: Adjustable value in average: 10 - 30 %, depending on type Contact Material: - Silber Integrated: - no Adjustable: - no Overpressure Safety (bar): - 700 bar Overpressure Safety (MPa): - 70 MPa Overpressure Safety (PSI): - 10150 psi Hysteresis: - Average value approx. 10 - 30% (adjustable at factory)
