Diaphragm pressure switch 0190
SPDTG 1/4IP65

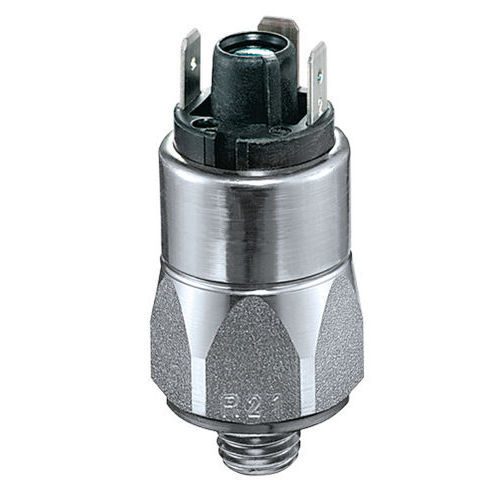

Diaphragm pressure switch - 0190 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / IP65
Diaphragm pressure switch - 0190 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / IP65
Diaphragm pressure switch - 0190 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / IP65 - image - 2
Diaphragm pressure switch - 0190 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / IP65 - image - 3
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Contact type
SPDT
Process connection
G 1/4
Protection level
rugged, IP65
Other characteristics
adjustable
Pressure range

Min.: 0.3 bar
(4.35 psi)

Max.: 100 bar
(1,450.38 psi)

Switching power: current

4 A

Burst pressure

200 bar, 700 bar
(2,900.75 psi, 10,152.64 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 120 °C
(248 °F)

Description

Changeover with silver or gold contacts Switching point can be adjusted when fitted on site Factory adjustable hysteresis (except types 0140 and 0141) High overpressure safety and long service life under harsh conditions Operating voltage up to 250 V Contact Material: - Gold Integrated: - no IP Rating: - IP00 Adjustable: - no Overpressure Safety (bar): - 100 bar Overpressure Safety (MPa): - 10 MPa Overpressure Safety (PSI): - 1450,4 psi Electrical Connection: - Steckanschluss Hysteresis: - Average value approx. 10 - 30% (adjustable at factory)
