Diaphragm pressure switch 0140
SPDTG 1/4IP65

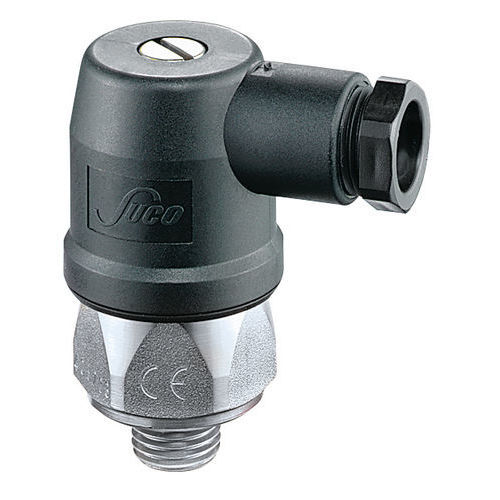

Diaphragm pressure switch - 0140 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / IP65
Diaphragm pressure switch - 0140 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / IP65
Diaphragm pressure switch - 0140 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / IP65 - image - 2
Diaphragm pressure switch - 0140 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / IP65 - image - 3
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Contact type
SPDT
Process connection
G 1/4
Protection level
IP65
Other characteristics
adjustable, IP65
Pressure range

Max.: 50 bar
(725.19 psi)

Min.: 0.3 bar
(4.35 psi)

Switching power: current

2 A

Burst pressure

200 bar, 700 bar
(2,900.75 psi, 10,152.64 psi)

Process temperature

Max.: 120 °C
(248 °F)

Min.: -40 °C
(-40 °F)

Description

Switching point can be adjusted when fitted on site High overpressure safety and long service life under harsh conditions Operating voltage up to 250 V Pressure type: Overpressure Adjustable switching point: Yes Hysteresis: Average value of 10 - 20 % (not adjustable) Switch function: Changeover Contact Material: - Silber Integrated: - no Adjustable: - no Overpressure Safety (bar): - 300 bar Overpressure Safety (MPa): - 30 MPa Overpressure Safety (PSI): - 4350 psi Electrical Connection: - screw terminals with protection cap Hysteresis: - Average value approx. 10 - 20% (not adjustable)
