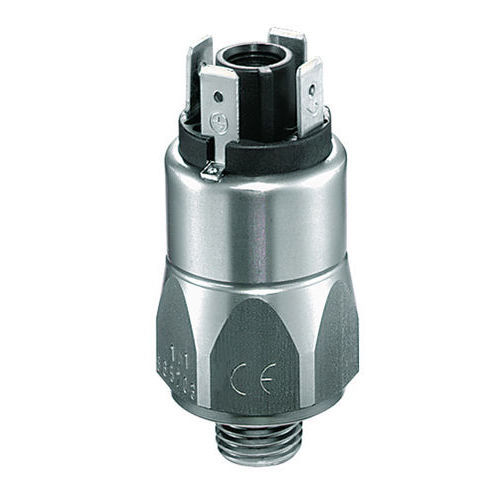

Diaphragm pressure switch 0186
SPDTG 1/4for liquids

Diaphragm pressure switch - 0186 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / for liquids
Diaphragm pressure switch - 0186 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / for liquids
Diaphragm pressure switch - 0186 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / for liquids - image - 2
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Contact type
SPDT
Process connection
G 1/4
Fluid
for liquids
Material
stainless steel
Protection level
rugged, IP65
Other characteristics
adjustable
Pressure range

Min.: 0.5 bar
(7.25 psi)

Max.: 100 bar
(1,450.38 psi)

Switching power: current

4 A

Burst pressure

200 bar, 700 bar
(2,900.75 psi, 10,152.64 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 120 °C
(248 °F)

Description

Switching point can be adjusted when fitted on site Factory adjustable hysteresis (except types 0140 and 0141) High overpressure safety and long service life under harsh conditions Operating voltage up to 250 V Contact Material: - Silber Integrated: - no IP Rating: - IP00 Adjustable: - no Overpressure Safety (bar): - 35 bar Overpressure Safety (MPa): - 3,5 MPa Overpressure Safety (PSI): - 500 psi Hysteresis: - Average value approx. 10 - 30% (adjustable at factory)
