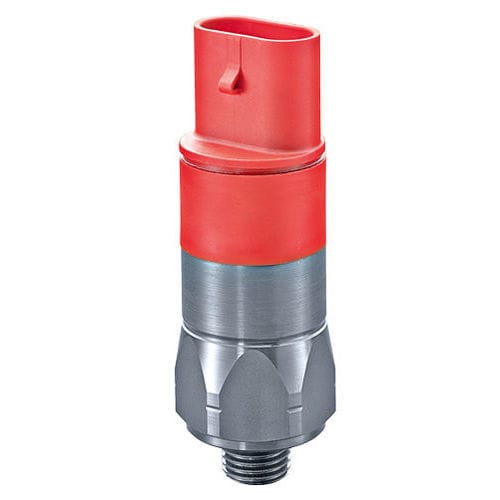

Piston pressure switch 0133SPDTNPT 1/4for liquids
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Contact type
- SPDT
- Process connection
- NPT 1/4
- Fluid
- for liquids
- Protection level
- rugged, IP67, IP6K9K
- Applications
- industrial
- Other characteristics
- adjustable, compact, rugged, plug-in
- Pressure range
Max.: 200 bar
(2,900.75 psi)Min.: 50 bar
(725.19 psi)- Switching power: current
Max.: 4,000 mA
Min.: 10 mA
- Burst pressure
1,000 bar
(14,503.77 psi)- Process temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
Changeover switch with silver or gold contacts
-Large selection of electrical plug-in types for quick attachment and reliable connection
-Hysteresis adjustable at factory
-Compact and rugged design in industrial environments like construction and agricultural machinery or commercial vehicles
-Switching point can be set on site with adjusting screw
-Very high overpressure safety
-The corresponding mating plugs are available as accessories
Contact Material: - Silber
Integrated: - yes
Adjustable: - no
Overpressure Safety (bar): - 700 bar
Overpressure Safety (MPa): - 70 MPa
Overpressure Safety (PSI): - 10150 psi
Electrical Connection: - TE AMP Superseal
Hysteresis: - Average value approx. 10 - 30% (adjustable at factory)
