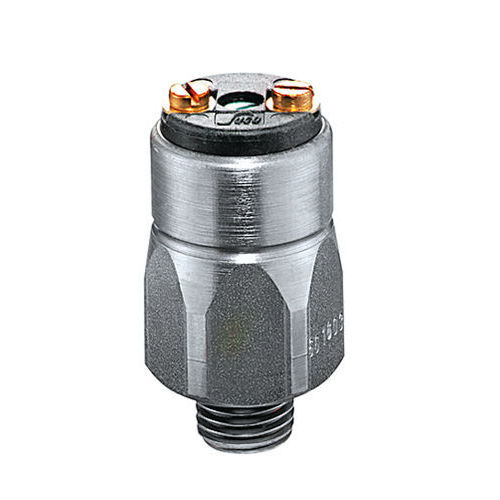

Diaphragm pressure switch 0166
NCG 1/4for liquids

Diaphragm pressure switch - 0166 - SUCO Robert Scheuffele GmbH & Co. KG - NC / G 1/4 / for liquids
Diaphragm pressure switch - 0166 - SUCO Robert Scheuffele GmbH & Co. KG - NC / G 1/4 / for liquids
Diaphragm pressure switch - 0166 - SUCO Robert Scheuffele GmbH & Co. KG - NC / G 1/4 / for liquids - image - 2
Diaphragm pressure switch - 0166 - SUCO Robert Scheuffele GmbH & Co. KG - NC / G 1/4 / for liquids - image - 3
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Contact type
NC
Process connection
G 1/4
Fluid
for liquids
Protection level
IP65
Other characteristics
adjustable, compact, high-pressure
Pressure range

Min.: 0.1 bar
(1.45 psi)

Max.: 50 bar
(725.19 psi)

Switching power: current

Min.: 10 mA

Max.: 4,000 mA

Burst pressure

400 bar
(5,801.51 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 120 °C
(248 °F)

Description

Most cost-effective solution for mechanical pressure monitoring Stable switching point even after long use and high load Switching point can be adjusted when fitted on site Product category: Mechanical pressure switch Contact Material: - Silber Integrated: - no IP Rating: - IP00 Adjustable: - no Overpressure Safety (bar): - 300 bar Overpressure Safety (MPa): - 30 MPa Overpressure Safety (PSI): - 4350 psi Electrical Connection: - screw terminal Hysteresis: - Average value approx. 5 - 30% (not adjustable)
