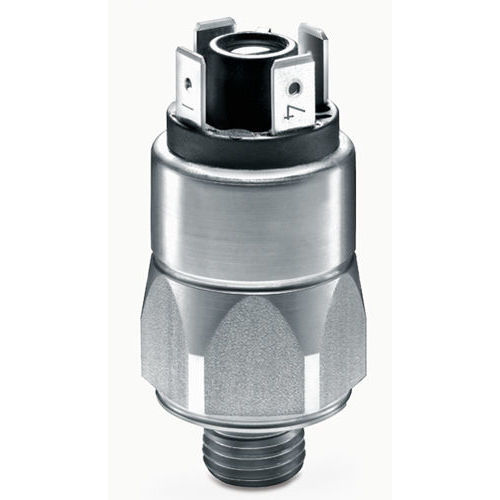

Piston pressure switch 0183
O-ringM14 x 1,5for liquids

Piston pressure switch - 0183 - SUCO Robert Scheuffele GmbH & Co. KG - O-ring / M14 x 1,5 / for liquids
Piston pressure switch - 0183 - SUCO Robert Scheuffele GmbH & Co. KG - O-ring / M14 x 1,5 / for liquids
Piston pressure switch - 0183 - SUCO Robert Scheuffele GmbH & Co. KG - O-ring / M14 x 1,5 / for liquids - image - 2
Piston pressure switch - 0183 - SUCO Robert Scheuffele GmbH & Co. KG - O-ring / M14 x 1,5 / for liquids - image - 3
Add to favorites
Compare this product

Characteristics

Technology
piston
Mounting
O-ring
Process connection
M14 x 1,5
Fluid
for liquids
Protection level
IP65
Other characteristics
adjustable
Pressure range

Max.: 300 bar
(4,351.13 psi)

Min.: 100 bar
(1,450.38 psi)

Switching power: current

4 A

Burst pressure

1,000 bar
(14,503.77 psi)

Process temperature

Max.: 120 °C
(248 °F)

Min.: -40 °C
(-40 °F)

Description

Changeover with silver or gold contacts Switching point can be adjusted when fitted on site High overpressure safety and long service life under harsh conditions Operating voltage up to 250 V Contact Material: - Silber Integrated: - no Adjustable: - no Overpressure Safety (bar): - 600 bar Overpressure Safety (MPa): - 60 MPa Overpressure Safety (PSI): - 8700 psi Hysteresis: - Average value approx. 10 - 30% (adjustable at factory)
