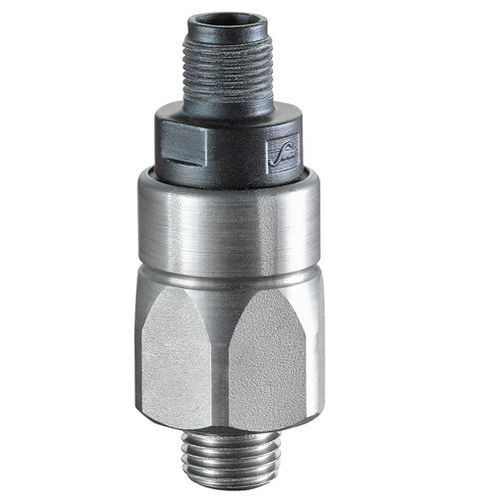

Piston pressure switch 0123for liquidsIP67rugged
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- for liquids
- Protection level
- rugged, IP67, IP6K9K
- Applications
- industrial
- Other characteristics
- compact, rugged, IP67, plug-in
- Pressure range
Max.: 150 bar
(2,175.57 psi)Min.: 50 bar
(725.19 psi)- Switching power: current
Max.: 4,000 mA
Min.: 10 mA
- Burst pressure
400 bar, 700 bar
(5,801.51 psi, 10,152.64 psi)- Process temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
Large selection of electrical plug-in types for quick attachment and reliable connection
High protection class (to IP67 or IP6K9K)
Compact and rugged design in industrial environments like construction and agricultural machinery or commercial vehicles
Switching point can be set on site with adjusting screw in the connector
High overpressure resistance, compact, small switches, available as normally open or normally closed
Contact Material: - Silber
Integrated: - yes
Adjustable: - no
Overpressure Safety (bar): - 600 bar
Overpressure Safety (MPa): - 60 MPa
Overpressure Safety (PSI): - 8700 psi
Connection: - M 10x1 keg.
Hysteresis: - Average value approx. 5 - 30% (not adjustable)
