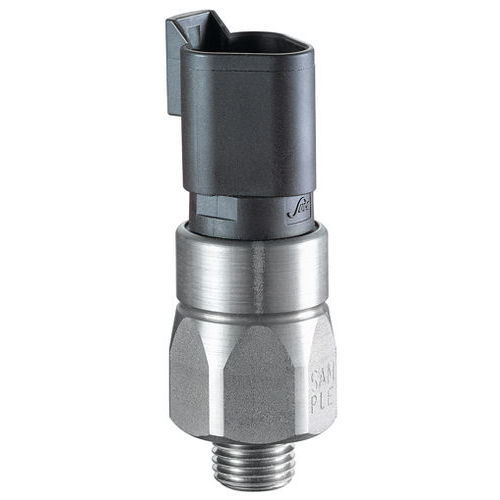

Piston pressure switch 0117
NPT 1/8for liquidsIP67

Piston pressure switch - 0117 - SUCO Robert Scheuffele GmbH & Co. KG - NPT 1/8 / for liquids / IP67
Piston pressure switch - 0117 - SUCO Robert Scheuffele GmbH & Co. KG - NPT 1/8 / for liquids / IP67
Piston pressure switch - 0117 - SUCO Robert Scheuffele GmbH & Co. KG - NPT 1/8 / for liquids / IP67 - image - 2
Add to favorites
Compare this product

Characteristics

Technology
piston
Process connection
NPT 1/8
Fluid
for liquids
Protection level
rugged, IP67, IP6K9K
Applications
industrial
Other characteristics
adjustable, compact, rugged, plug-in
Pressure range

Max.: 150 bar
(2,175.57 psi)

Min.: 50 bar
(725.19 psi)

Switching power: current

Max.: 4,000 mA

Min.: 10 mA

Burst pressure

700 bar
(10,152.64 psi)

Process temperature

Max.: 120 °C
(248 °F)

Min.: -40 °C
(-40 °F)

Description

Large selection of electrical plug-in types for quick attachment and reliable connection Compact and rugged design in industrial environments like construction and agricultural machinery or commercial vehicles Switching point can be set on site with adjusting screw in the connector High overpressure resistance, compact, small switches, available as normally open or normally closed Contact Material: - Silber Integrated: - yes Adjustable: - no Overpressure Safety (bar): - 600 bar Overpressure Safety (MPa): - 60 MPa Overpressure Safety (PSI): - 8700 psi Hysteresis: - Average value approx. 5 - 30% (not adjustable)
