Diaphragm pressure switch 0161
SPDTG 1/4for liquids

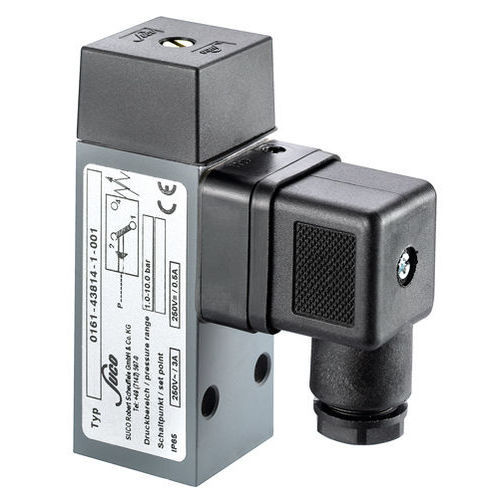

Diaphragm pressure switch - 0161 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / for liquids
Diaphragm pressure switch - 0161 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / for liquids
Diaphragm pressure switch - 0161 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / for liquids - image - 2
Diaphragm pressure switch - 0161 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / for liquids - image - 3
Diaphragm pressure switch - 0161 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / G 1/4 / for liquids - image - 4
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Contact type
SPDT
Process connection
G 1/4
Fluid
for liquids
Protection level
IP65
Other characteristics
adjustable
Pressure range

Min.: 0.5 bar
(7.25 psi)

Max.: 400 bar
(5,801.51 psi)

Switching power: current

5 A

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 120 °C
(248 °F)

Description

-Attachment options for wall fitting and block style enable -Clearly structured, accessible, easy-maintenance installation -Switching pressure can be adjusted easily by user -High overpressure safety -Socket devices enable simple installation on the machine Overpressure safety: 200 bar, 600 bar Pressure type: Overpressure Adjustable switching point: Yes Contact Material: - Silber Integrated: - no Adjustable: - no Overpressure Safety (bar): - 200 bar Overpressure Safety (MPa): - 20 MPa Overpressure Safety (PSI): - 2900 psi Switching Function: - Change over contacts (SPDT) Hysteresis: - ca. 10 - 30 % (im Werk einstellbar)
