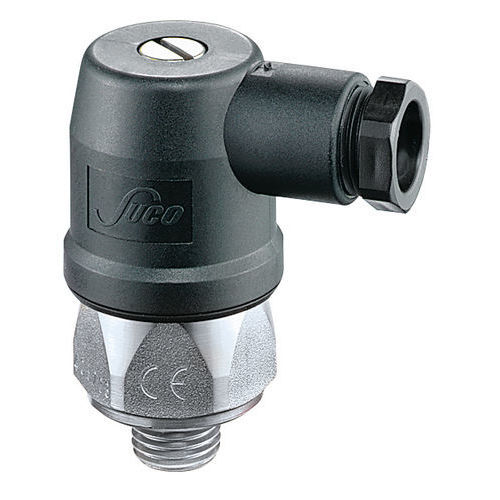

Piston pressure switch 0141
SPDTUNFfor liquids

Piston pressure switch - 0141 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / UNF / for liquids
Piston pressure switch - 0141 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / UNF / for liquids
Piston pressure switch - 0141 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / UNF / for liquids - image - 2
Piston pressure switch - 0141 - SUCO Robert Scheuffele GmbH & Co. KG - SPDT / UNF / for liquids - image - 3
Add to favorites
Compare this product

Characteristics

Technology
piston
Contact type
SPDT
Process connection
UNF
Fluid
for liquids
Protection level
IP65
Other characteristics
adjustable
Pressure range

Max.: 150 bar
(2,175.57 psi)

Min.: 50 bar
(725.19 psi)

Switching power: current

2 A

Burst pressure

1,000 bar
(14,503.77 psi)

Process temperature

Max.: 120 °C
(248 °F)

Min.: -40 °C
(-40 °F)

Description

Switching point can be adjusted when fitted on site High overpressure safety and long service life under harsh conditions Operating voltage up to 250 V Overpressure safety: Pressure type: Overpressure Adjustable switching point: Yes Hysteresis: Average value of 10 - 20 % (not adjustable) Contact Material: - Silber Integrated: - no Adjustable: - no Overpressure Safety (bar): - 600 bar Overpressure Safety (MPa): - 60 MPa Overpressure Safety (PSI): - 8700 psi Connection: - 9/16-18 UNF Hysteresis: - Average value approx. 10 - 20% (not adjustable)
