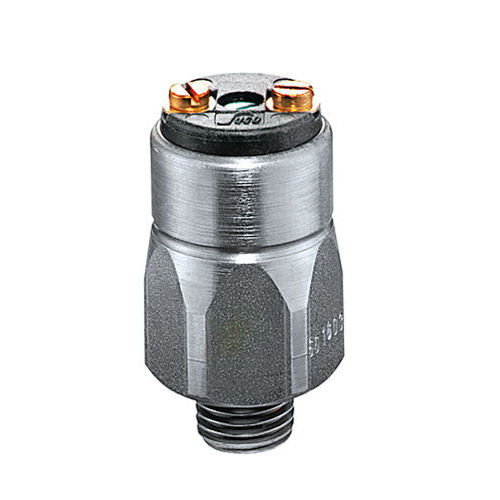

Piston pressure switch 0169

for liquidsIP65modular

Ready-wired pressure switches hex 24 and hex 27, available with all commercial plug-in types and individual cable length. The technical details of ready-wired pressure switch types correspond to those of the same standard pressure switch types. Different technical details will be agreed with the customer. Ready-wired pressure switches enable plug connectors to be in climatically non-critical and low-vibration areas. The modular layout also enables the production of lower volumes. The switching point for ready-wired pressure switches is factory-set to a fixed value. Exception: The switching point of the 0240/0241 can be adjusted on site even after the sealing process. Contact Material: - Silber Integrated: - no IP Rating: - IP00 Adjustable: - no Overpressure Safety (bar): - 600 bar Overpressure Safety (MPa): - 60 MPa Overpressure Safety (PSI): - 8700 psi Electrical Connection: - screw terminal Connection: - M 10x1 zyl. Hysteresis: - Average value approx. 5 - 30% (not adjustable)
