- Diaphragm pressure switch
- SUCO Robert Scheuffele GmbH & Co. KG

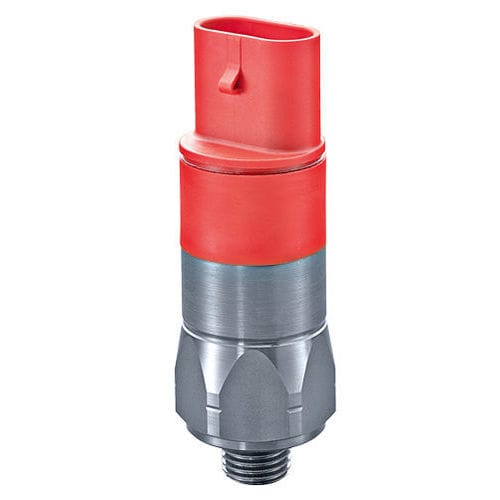

Diaphragm pressure switch 0132G 1/4for liquidsIP67
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Process connection
- G 1/4
- Fluid
- for liquids
- Protection level
- rugged, IP67, IP6K9K
- Applications
- industrial
- Other characteristics
- adjustable, compact, rugged, plug-in
- Pressure range
Max.: 100 bar
(1,450.38 psi)Min.: 0.3 bar
(4.35 psi)- Switching power: current
Max.: 4,000 mA
Min.: 10 mA
- Burst pressure
400 bar
(5,801.51 psi)- Process temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
Changeover switch with silver or gold contacts
-Large selection of electrical plug-in types for quick attachment and reliable connection
-Hysteresis adjustable at factory
-Compact and rugged design in industrial environments like construction and agricultural machinery or commercial vehicles
-Switching point can be set on site with adjusting screw
-Very high overpressure safety
-The corresponding mating plugs are available as accessories
Contact Material: - Silber
Integrated: - yes
Adjustable: - no
Overpressure Safety (bar): - 400 bar
Overpressure Safety (MPa): - 40 MPa
Overpressure Safety (PSI): - 5800 psi
Hysteresis: - Average value approx. 10 - 30% (adjustable at factory)
