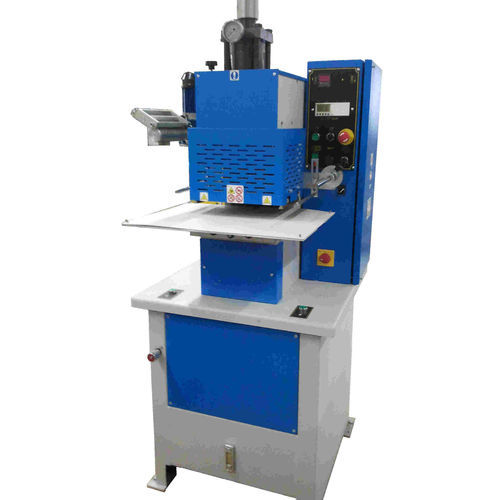

Hot marking press ST 90

automatic

Overview
This hydraulic press delivers 10 tons of force in a robust swan-neck frame, enabling precise cutting, overcutting and stamping operations. A mechanical stop integrated into the pressure hydraulic cylinder ensures accurate control of stamping and cutting depth. The working cycle is automatic and fully programmable (temperature, dwell time, foil-stamping tape advance). Machine available with inward (retractable) or lateral table options to suit production layouts.

Materials processed

• Polypropylene
• Aluminium
• Steel

Working / Automation

• Automatic, programmable cycle: temperature, dwell time, foil/foil-stamping tape advance
• Mechanical stop integrated in the pressure hydraulic cylinder for precise depth control
• Available with inward (retractable) or lateral table
• Inward automatic carriage for template indexing

Options

• Inductive sensor to validate the inward position of the plate (ensures consistent ZERO point)
• Flap holder-buttons, two lateral flaps, dovetail tool-holder system
• Air-jet system for part ejection
• Front guard with pneumatic opening
• Other configurations and models on request

Technical specifications

• Power: 10 tons
• Working area: 300×200 mm
• Opening: 80 mm
• Stroke: 80 mm
• Heating: 200 °C
• Available with or without foil-stamping tape unwinder
• Inward automatic carriage for template indexing
