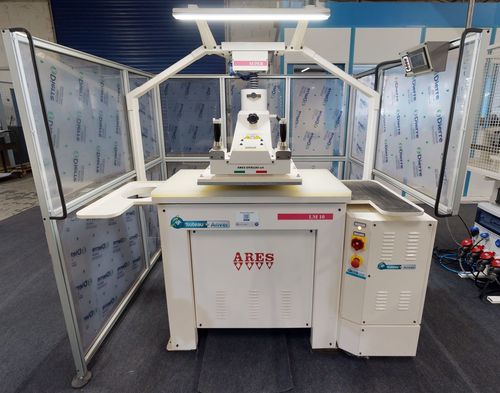

Hydraulic press ARES LM 10 SUPER

motorizedmanually-controlledcutting

Overview
Compact hydraulic swing-arm cutting press ARES BY SUTEAU-ANVER Model LM 10 SUPER for precision die-cutting of soft materials in single or multiple layers. Features assisted swing arm and ELECTRONIC CUT control for consistent operation.

Available models

• 900 x 450 mm
• 1000 x 500 mm
• 1200 x 500 mm

Compatible materials

• Paper
• Textile
• Leather
• Gasket materials
• Foams
• Plastics
• Carpet
• Wood
• Felt
• Rubber
• Others

General features

• Maximum cutting force: 27 tons
• Automatic stroke end with pressure switch to accept cutters of different heights without manual adjustment
• Assisted swing beam movement for simplified operator handling
• ELECTRONIC CUT system with control display for cutting and rotation parameters
• EC standard guards and cell barrier for perimeter safety

Technical features

• Power: 27 tons
• Swing beam width: 380–610 mm
• Stroke: 100 mm
• Delivered table sizes with block: 900 x 450 to 1200 x 500 mm
• Control display includes parameters for arm cutting and rotation; maintenance and after-sales assistance functions

2 cutting modes

• Mode 1 – automatic detection of cutting point regardless of cutter height
• Mode 2 – time-controlled descent of the swing beam
• Cutting power adjustable via potentiometer in both modes

Options

• Holding system for the arm when power is off
• Joystick control
• Handles inclinable to 45°
• Safety sensitive bar control
• Dimmable lighting
• Discard container
• Side-removable block
• Block trolley
• Stand
• Die storage

Available versions
Available in EC standard / non-EC standard; single-phase or three-phase electrical supply.

Technical specifications

• Model name: ARES LM 10 SUPER
• Table sizes: 900 x 450 mm, 1000 x 500 mm, 1200 x 500 mm
• Maximum cutting force: 27 tons
• Swing beam width range: 380–610 mm
• Stroke: 100 mm
• Safety: EC standard guards and cell barrier
• Control: Electronic display with cutting and rotation parameters; potentiometer for power adjustment
• Options: joystick, inclined handles, sensitive bar, lighting, discard container, removable side block, trolley, stand, die storage
• Versions: EC standard, non-EC, single-phase or three-phase
