Mechanical press SA series

motorizedelectroniccutting

Overview

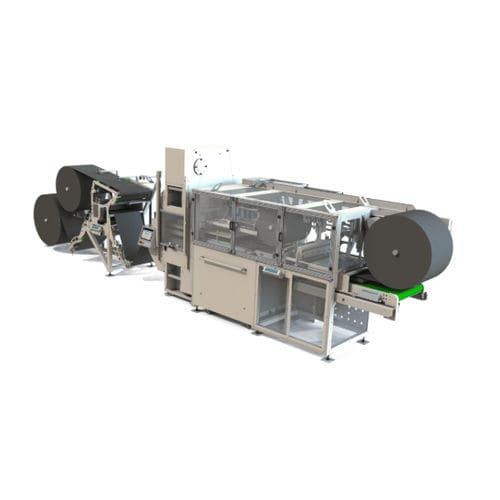

The mechanical kiss-cutting press is a high-throughput industrial die-cutting solution for full or partial cuts of soft materials (foam, rubber, paper, cardboard, composites). Available as a single machine or integrated into complete production lines, it processes rolls or sheets for kiss-cut, stripping, slitting, unwinding and rewinding. Depending on feed step and configuration, the press can reach up to 180 strokes per minute.

Main functional description

• Welded gap-frame structure with moving upper platen driven by connecting rods and crank system linked to a geared motor; all joints on bearings and guarded.
• Tool support metal sheet supplied; die fixed by screws and clamped to the upper platen via a hand-locking dovetail.
• Lower platen adjustable by nut-and-bolt system to precisely set kiss-cut point; replaceable bolster plate on lower platen.
• Double feed rollers (upstream and downstream) on each side of the platen, driven by brushless/servo motors for dynamic response and accurate step feeding; independent on/off control for push or pull feeding modes.
• Guiding and positioning systems at the cutting area and variable-tension guide rolls at the press entry.
• Programmable digital control for feed step, acceleration, deceleration, cuts per stroke, etc.; memory for up to 999 production programs; user-friendly interface.
• Compliance with current safety standards and wide range of options for adaptation to specific production needs.

Key Features

• Industrial die-cutting for full and kiss-cut applications.
• High-speed operation up to 180 strokes/minute depending on configuration.
• Precise mechanical advance accuracy ±0.1 mm and manual cut adjustment to 0.01 mm.
• Brushless/servo-driven feed rollers for accurate step feeds.
• Configurable working areas from 350×350 mm to 1000×1000 mm.
• Available cutting powers from 10 to 80 tons across models 110–180.
• Adaptable to multiple sectors (aeronautics, automotive, packaging) with multiple peripherals.

Options / Peripherals (examples)
Upline peripherals

• Unwinders
• Rewinders
• Laminating unit
• Depalletiser
• Junction / splicing table

Downline peripherals

• Knock-out station
• Slitting unit
• Rewinders
• Cross-cutting / guillotine
• Conveyor belts
• Automatic stacking systems

Available versions

• Model 110: cutting power 10 T
• Model 120: cutting power 20 T
• Model 135: cutting power 35 T
• Model 150: cutting power 50 T
• Model 180: cutting power 80 T

Technical specifications

• Cutting power: 10 to 80 tons (models 110–180).
• Working area options: from 350×350 mm up to 1000×1000 mm (multiple configurations per model).
• Maximum rate: up to 180 strokes/min; Minimum rate: 60 strokes/min (depending on feed step).
• Mechanical feed accuracy: ±0.1 mm; manual cut adjustment: 0.01 mm.
• Double roller feed with pneumatic opening; feed rollers driven by brushless/servo motors with independent on/off control.
• Electrical power: typically 7 to 20 kW depending on model and configuration.
• Tool support metal sheet and replaceable bolster plate; hand-locking dovetail for die clamping.
• Digital control with memory for up to 999 production programs and programmable parameters (step, acceleration, cuts per stroke, etc.).
• Compliant with applicable safety standards; extensive options for production-specific adaptations.
• Example size/power combinations: 350×350 mm | 10 T; 400×400 mm | 20/35/50 T; 500×500 mm | 20/35/50 T; 600×600 mm | 35/50/80 T; 800×800 mm | 50/80 T; 1000×1000 mm | 80 T.
