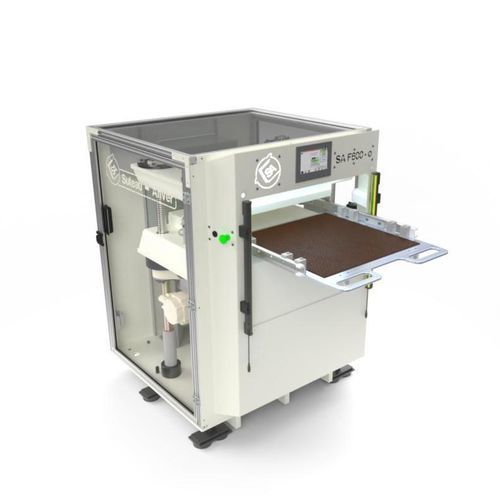

Electric press SA F600-e

high-speed blankingdie-cuttingrubber

Overview
The SA F600-e is an electric die-cutting press by Suteau-Anver designed for cutting single or multiple layers of soft and semi-rigid materials. It combines precise motion control and compact footprint to integrate easily into production lines while offering flexible operator ergonomics for seated or standing operation.

Key features

• Exceptional cutting precision: Four synchronized ball screws maintain perfect parallelism between the bridge and the table across the full stroke.
• Intuitive user interface: 7-inch color touchscreen for fast and clear operation.
• Compact footprint: Requires approximately 1.4 m² of floor space for easy installation.
• Optimized ergonomics: Table height adjustable from 750 to 1050 mm to support seated or standing work.

Multiple Applications

• Automotive: Cutting soft interior components.
• Aerospace: Producing leather, foam and composite furnishings.
• Leather goods: Manufacturing bags, belts and accessories.
• Packaging industry: Creating supports and inserts in cardboard, felt or plastic.

Advantages of the SA F600-e

• Energy efficiency: Low power consumption in active and standby modes.
• Reliability and reduced maintenance: Fully electric design eliminates hydraulic circuits and leak risk.
• Material versatility: Suitable for leather, foam, textiles, PVC, rubber, cardboard, felt, plastic and other soft or semi-rigid materials.
• Low noise operation: Designed for operator comfort and long service life.

Options

• Foot pedal for cycle activation
• Remote monitoring via telemaintenance
• Optional automatic table
• Automatic beam height adjustment

Technical specifications

• Cutting power: 25 to 35 tons
• Working surface: 600 x 600 mm or 750 x 600 mm
• Cutting cycle: 1.5 to 12 seconds depending on settings
• Energy consumption: 8 kW at full power, 0.25 kW in standby
• Table height adjustment range: 750 to 1050 mm
• Drive / accuracy: 4 synchronized ball screws ensuring bridge/table parallelism
• User interface: 7-inch color touchscreen
• Footprint: approx. 1.4 m² required
• Materials processed: leather, foam, textiles, PVC, rubber, cardboard, felt, plastic and other soft or semi-rigid materials
• Typical applications: automotive interiors, aerospace furnishings, leather goods, packaging, furniture and composite materials
