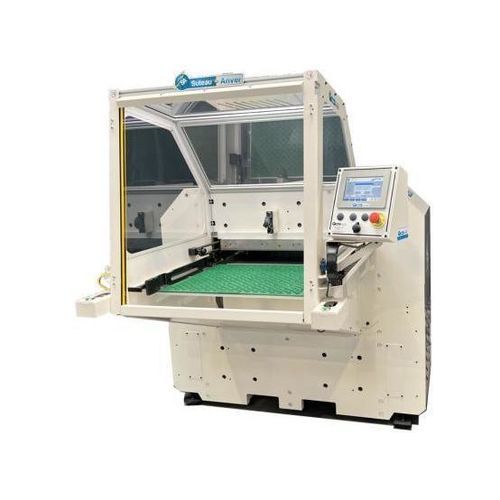

Hydraulic press PCDH

die-cuttinghigh-speed blankingfine-blanking

Product overview
Hydraulic press for thermocompression operations including embossing, glazing and die-cutting on flexible materials. Model PCDH integrates a heated beam and adjustable stroke for controlled embossing and cutting cycles.

Applications

• Embossing, hot-stamping/glazing and die-cutting of leather, PVC, textiles, laminates and similar flexible materials
• Suitable for production runs and prototyping in packaging, upholstery and label manufacturing

Technical features

• Electrical supply: 400 V three-phase + Neutral + Earth, 50 Hz
• Beam travel speed (forward/back): 40 m/min
• Beam stop accuracy: +/-1 mm
• Approach speed: 3 m/min
• Cutting speed: 0.75 m/min
• Opening speed: 3 m/min
• Stroke: 75 mm
• Heating time: approx. 30 min to reach 130°C
• Work surface height: 980 mm

Useful working area

• 660×725 mm

Dimensions

• D 2245 × L 1650 × H 1900 mm

Options
Multiple options are available to adapt the machine to specific production requirements, including alternative tooling, PID temperature control and PLC interface.

Technical specifications

• Electrical supply: 400 V three-phase + Neutral + Earth, 50 Hz
• Beam travel speed (forward/back): 40 m/min
• Beam stop accuracy: +/-1 mm
• Approach speed: 3 m/min
• Cutting speed: 0.75 m/min
• Opening speed: 3 m/min
• Stroke: 75 mm
• Heating time: approx. 30 min to reach 130°C
• Work surface height: 980 mm
• Useful working area: 660×725 mm
• Dimensions: D 2245 × L 1650 × H 1900 mm
