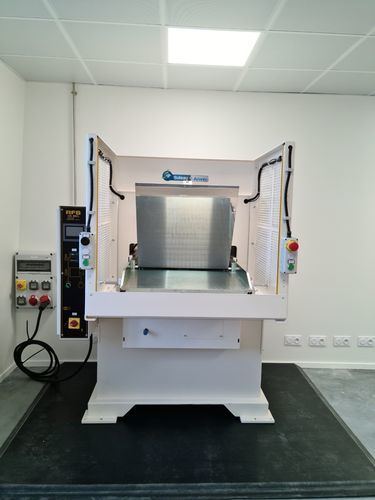

Hydraulic press BT4 series

embossingcuttingmarking

Product description
This hydraulic press is a versatile industrial machine available in versions from 90 to 180 tons. It performs embossing, cutting, overcutting and marking with precise control and high pressing capacity. The central hydraulic pressure cylinder provides substantial force and the mechanical stop allows accurate control of embossing, cutting and marking depth.

Fields of activity

• Leathergoods manufacturing — long-established application of this machine type
• Industrial applications requiring precise cutting on steel plates

Materials for cutting / overcutting
Cutting and overcutting can be carried out on polypropylene, aluminium, blue plate and ground steel.

Working cycle
The working cycle is automatic and programmable (temperature and dwell/pressing time settings).

Options

• Material feeding with rollers
• Roll-holder units

Available versions

• BT4/2 – 90 Tons — 500x450 mm
• BT4/2 – 120 Tons — 500x450 mm
• BT4/3 – 120 Tons — 600x500 mm
• BT4/4 – 180 Tons — 700x600 mm
• BT4/4 – 180 Tons — 1000x800 mm

Technical specifications

• Useful power adjustable from 90 to 180 tons
• Useful area from 500x450 mm to 1000x800 mm
• Opening: 75 mm
• Stroke: 75 mm
• Inward automatic carriage with adjustable speed
• With or without mechanical stop
• With or without plate with automatic opening
• With or without upper plate die-holder
• With or without heating in lower and upper parts (max. 190°)
• Plating temporization
• Counter
• Parameter display
• Mechanical front protection or light curtains
